<h1 class="title toc-ignore">Compare smashgen and anscombe transform</h1>
<h4 class="author"><em>Dongyue Xie</em></h4>
<h4 class="date"><em>2018-10-13</em></h4>

</div>


<p><strong>Last updated:</strong> 2018-10-18</p>
<strong>workflowr checks:</strong> <small>(Click a bullet for more information)</small>
<ul>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>R Markdown file:</strong> up-to-date </summary></p>
<p>Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Environment:</strong> empty </summary></p>
<p>Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Seed:</strong> <code>set.seed(20180501)</code> </summary></p>
<p>The command <code>set.seed(20180501)</code> was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Session information:</strong> recorded </summary></p>
<p>Great job! Recording the operating system, R version, and package versions is critical for reproducibility.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Repository version:</strong> <a href="https://github.com/DongyueXie/smash-gen/tree/8407596f579a7c146d9548ac3ccb5b10364da12b" target="_blank">8407596</a> </summary></p>
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated. <br><br> Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use <code>wflow_publish</code> or <code>wflow_git_commit</code>). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
<pre><code>
Ignored files:
    Ignored:    .DS_Store
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    analysis/figure/
    Ignored:    data/.DS_Store

Untracked files:
    Untracked:  analysis/chipexoeg.Rmd
    Untracked:  analysis/talk1011.Rmd
    Untracked:  data/chipexo_examples/
    Untracked:  data/chipseq_examples/
    Untracked:  talk.Rmd
    Untracked:  talk.pdf

Unstaged changes:
    Modified:   analysis/literature.Rmd
    Modified:   analysis/sigma.Rmd

</code></pre>
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes. </details>
</li>
</ul>
<details> <summary> <small><strong>Expand here to see past versions:</strong></small> </summary>
<ul>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
File
</th>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
<th style="text-align:left;">
Message
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
Rmd
</td>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/8407596f579a7c146d9548ac3ccb5b10364da12b/analysis/compares.Rmd" target="_blank">8407596</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
<td style="text-align:left;">
wflow_publish(“analysis/compares.Rmd”)
</td>
</tr>
<tr>
<td style="text-align:left;">
html
</td>
<td style="text-align:left;">
<a href="https://cdn.rawgit.com/DongyueXie/smash-gen/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/compares.html" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
<td style="text-align:left;">
Build site.
</td>
</tr>
<tr>
<td style="text-align:left;">
Rmd
</td>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/3b5e17fd462095e9bfa14809383a0aaed43a4a77/analysis/compares.Rmd" target="_blank">3b5e17f</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
<td style="text-align:left;">
wflow_publish(“analysis/compares.Rmd”)
</td>
</tr>
</tbody>
</table>
</ul>
<p></details></p>
<hr />
<div id="introduction" class="section level2">
<h2>Introduction</h2>
<p>Compare 1. smashgen-ash.identity 2. smashgen-ash.log 3. smashgen-ash.identity.zero 4. smashgen-ash.log.zero (known and unknown nugget effect) with smash-anscombe.</p>

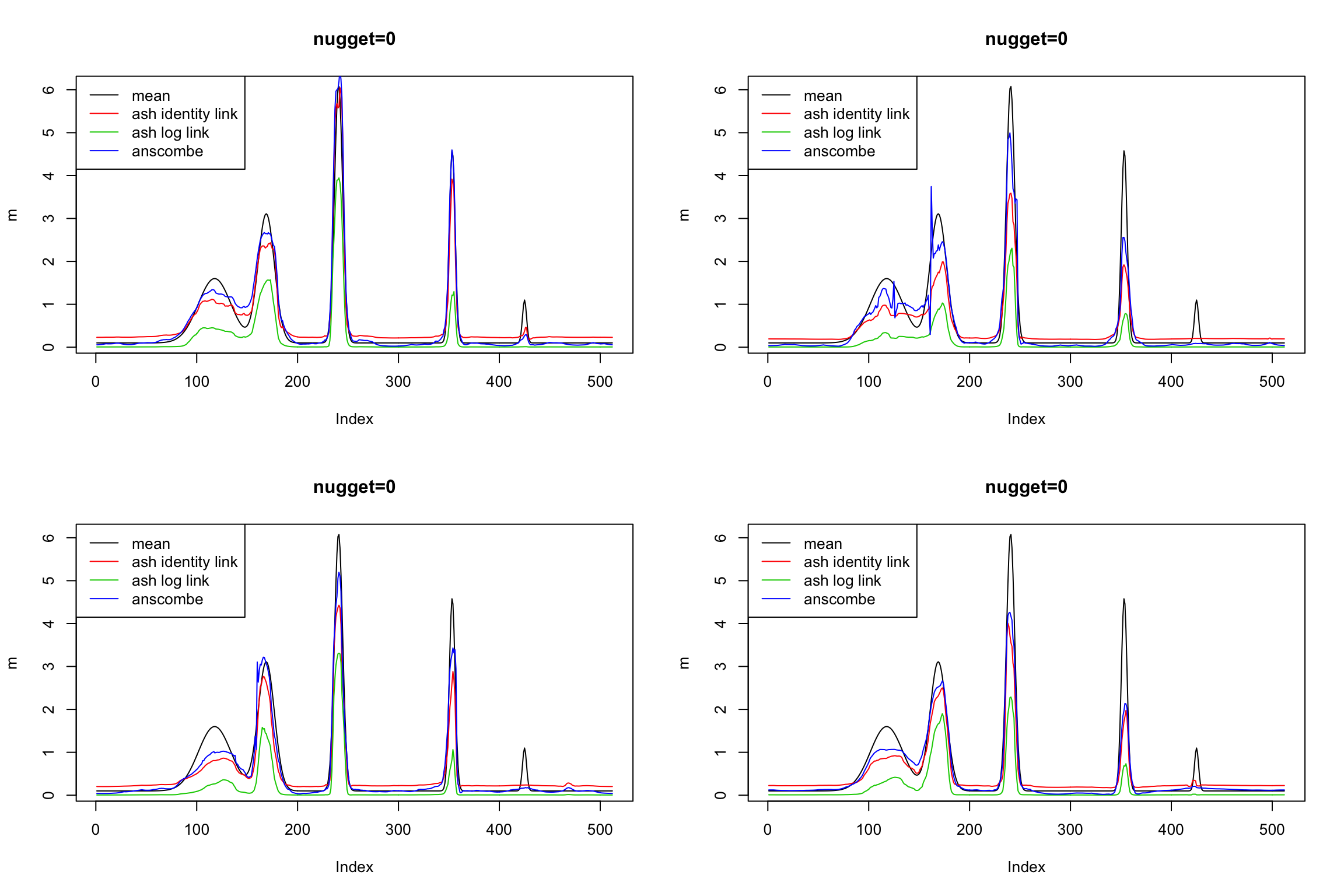

<p>Settings: spike mean function, mean function range (0.1,6) and (20,50)</p>
<p>Note:</p>

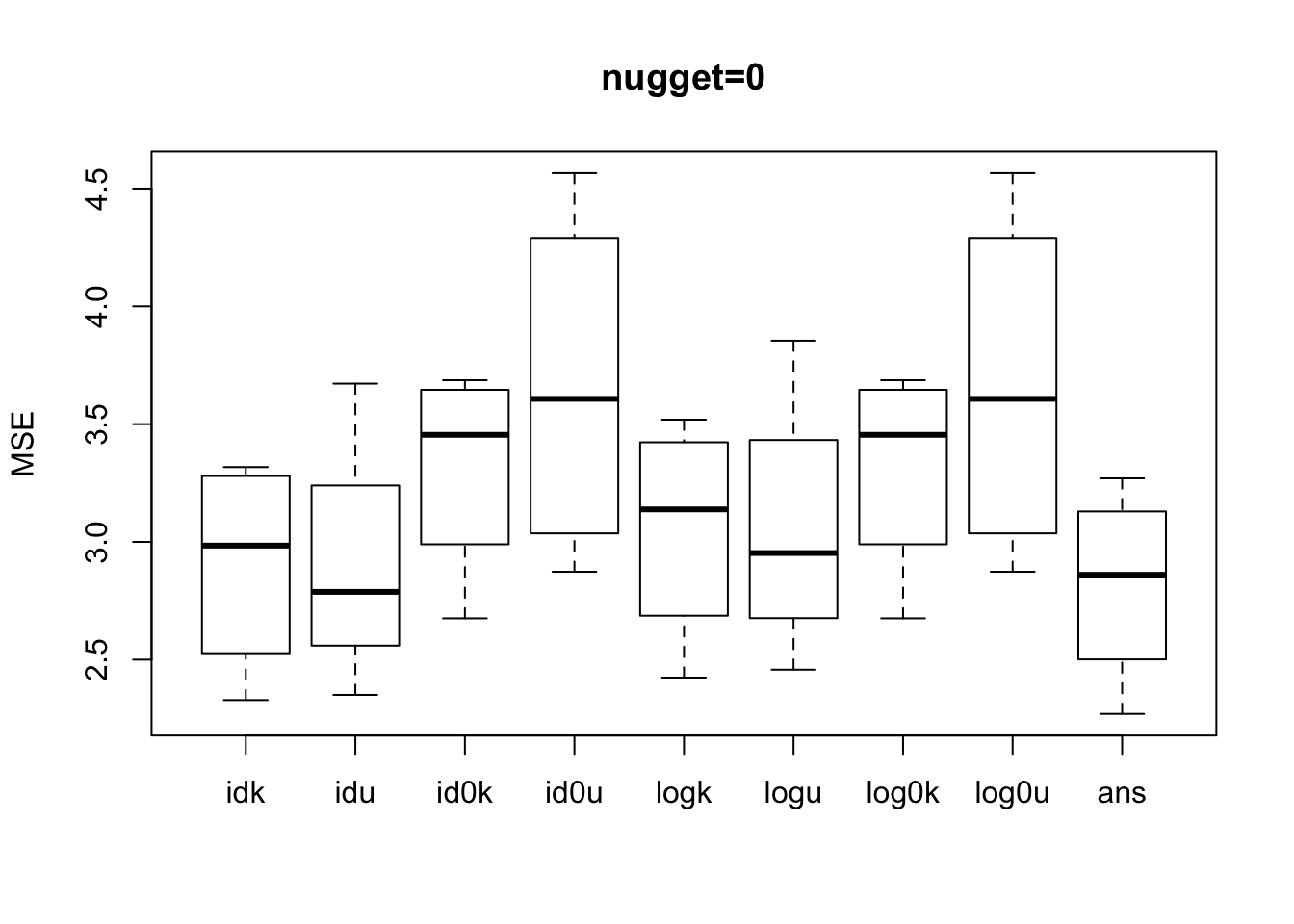

<ol style="list-style-type: decimal">
<li>idk: expand around ash posterior mean using identity link in lik_pois; given nugget effect(use <code>sigma=sqrt(nugget^2+s^2)</code> in <code>smash.gaus</code>).</li>
<li>idu: same as 1; unknown nugget effect(use <code>sigma=NULL</code> in <code>smash.gaus</code>).</li>
<li>id0k: expand around ash posterior mean using identity link only for 0 <span class="math inline">\(x\)</span>s and around <span class="math inline">\(x\)</span> for nonzero <span class="math inline">\(x\)</span>s; given nugget effect.</li>
<li>id0u: same as 3; unkown nugget effect</li>
<li>logk: expand around ash posterior mean using log link in lik_pois; given nugget effect</li>
<li>logu: same as 5; unkown nuggect effect</li>
<li>log0k: expand around ash posterior mean using log link only for 0 <span class="math inline">\(x\)</span>s and around <span class="math inline">\(x\)</span> for nonzero <span class="math inline">\(x\)</span>s; given nugget effect.</li>
<li>logu: same as 7; unkown nugget effect</li>
<li>ans: use anscombe transormation on poisson data, variance around 1/4; use 0 variance for 0 <span class="math inline">\(x\)</span>s.</li>
</ol>
<pre class="r"><code>vst_smooth=function(x,method,ep=1e-5){
  n=length(x)
  if(method==&#39;sr&#39;){
    x.t=sqrt(x)
    x.var=rep(1/4,n)
    x.var[x==0]=0
    mu.hat=(smashr::smash.gaus(x.t,sigma=sqrt(x.var)))^2

  }
  if(method==&#39;anscombe&#39;){
    x.t=sqrt(x+3/8)
    x.var=rep(1/4,n)
    x.var[x==0]=0
    mu.hat=(smashr::smash.gaus(x.t,sigma=sqrt(x.var)))^2-3/8
  }
  if(method==&#39;log&#39;){
    x.t=x
    x.t[x==0]=ep
    x.var=1/x.t
    x.t=log(x.t)
    mu.hat=exp(smashr::smash.gaus(x.t,sigma=sqrt(x.var)))
  }
  return(mu.hat)
}

smash_gen_all=function(x,sigma,method){
  n=length(x)
  if(method==&#39;identity&#39;){
    x.ash=ash(rep(0,n),1,lik=lik_pois(x,link=&#39;identity&#39;))$result$PosteriorMean
  }
  if(method==&#39;log&#39;){
    x.ash=ash(rep(0,n),1,lik=lik_pois(x,link=&#39;log&#39;))$result$PosteriorMean
  }
  if(method==&#39;identity.zero&#39;){
    x.ash=ash(rep(0,n),1,lik=lik_pois(x,link=&#39;identity&#39;))$result$PosteriorMean
    x.ash[x!=0]=x[x!=0]
  }
  if(method==&#39;log.zero&#39;){
    x.ash=ash(rep(0,n),1,lik=lik_pois(x,link=&#39;log&#39;))$result$PosteriorMean
    x.ash[x!=0]=x[x!=0]
  }
  y=log(x.ash)+(x-x.ash)/x.ash
  s2=1/x.ash
  mu.sigk=exp(smash.gaus(y,sigma=sqrt(sigma^2+s2)))
  mu.sigu=exp(smash.gaus(y))
  return(list(mu.sigk=mu.sigk,mu.sigu=mu.sigu))
}

simu_study=function(m,sigma=0,nsimu=100,seed=12345){
  set.seed(12345)
  idk=c()
  idu=c()
  id0k=c()
  id0u=c()
  logk=c()
  logu=c()
  log0k=c()
  log0u=c()
  ans=c()
  for (i in 1:nsimu) {
    lambda=exp(log(m)+rnorm(n,0,sigma))
    x=rpois(n,lambda)
    id=smash_gen_all(x,sigma,&#39;identity&#39;)
    id0=smash_gen_all(x,sigma,&#39;identity.zero&#39;)
    logg=smash_gen_all(x,sigma,&#39;log&#39;)
    log0=smash_gen_all(x,sigma,&#39;log.zero&#39;)

    idk=rbind(idk,id$mu.sigk)
    idu=rbind(idu,id$mu.sigu)
    id0k=rbind(id0k,id0$mu.sigk)
    id0u=rbind(id0u,id0$mu.sigu)
    logk=rbind(logk,logg$mu.sigk)
    logu=rbind(logu,logg$mu.sigu)
    log0k=rbind(log0k,log0$mu.sigk)
    log0u=rbind(log0u,log0$mu.sigu)
    ans=rbind(ans,vst_smooth(x,&#39;anscombe&#39;))
  }
  return(list(idk=idk,idu=idu,id0k=id0k,id0u=id0u,logk=logk,logu=logu,log0k=log0k,log0u=log0u,ans=ans))
}</code></pre>
<p>First we compare all the methods mentioned above using spike mean function whose mean range is around (0.1,6) so there are a number of zero counts in the sequence. This would be a challenge for smashgen since we are using log transformation.</p>
<pre class="r"><code>library(ashr)
library(smashr)

spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) + 1.5 * exp(-2000 * (x - 0.33)^2) + 3 * exp(-8000 * (x - 0.47)^2) + 2.25 * exp(-16000 *
    (x - 0.69)^2) + 0.5 * exp(-32000 * (x - 0.83)^2))
n = 512
t = 1:n/n
m = spike.f(t)

m=m*2+0.1
range(m)</code></pre>
<pre><code>[1] 0.100000 6.076316</code></pre>
<pre class="r"><code>result=simu_study(m,sigma=0,nsimu = 4)

mses=lapply(result, function(x){apply(x, 1, function(y){mean((y-m)^2)})})

unlist(lapply(mses, mean))</code></pre>
<pre><code>         idk          idu         id0k         id0u         logk
5.369863e+02 2.095411e+02 2.827456e-01 1.419588e-01 3.213241e+47
        logu        log0k        log0u          ans
2.343187e+15 1.163829e+00 4.926503e-01 7.836854e-02 </code></pre>

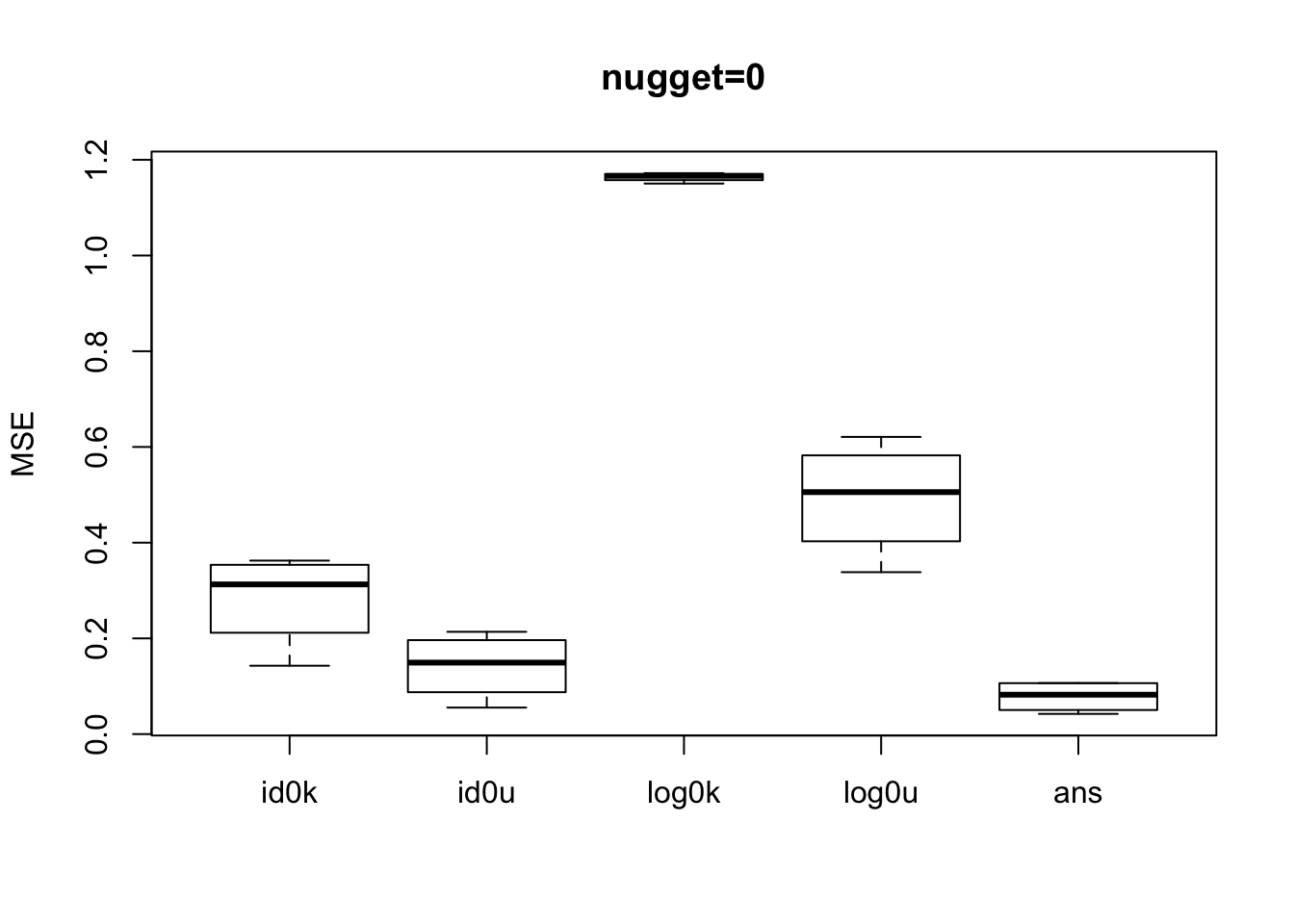

<pre class="r"><code>boxplot(mses[-c(1,2,5,6)],main=&#39;nugget=0&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/compares.Rmd/unnamed-chunk-2-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of unnamed-chunk-2-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/figure/compares.Rmd/unnamed-chunk-2-1.png" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
</tr>
</tbody>
</table>
<p></details></p>
<p>When there is no nugget effect, id0k, id0u, log0u have relatively smaller mean square error(mse) while anscombe transformation outperforms all smashgen methods and achieves smaller mse.</p>
<p>We plot the estimated mean function of id0u, log0u and ans for comparison. log0u seems to result in underestimations of mean function. id0u overestimates small means and underestimates large means. So when there are a number of zero observations, it’s very crucial to choose where to expand for 0 <span class="math inline">\(x\)</span>s.</p>
<pre class="r"><code>par(mfrow=c(2,2))

for (j  in c(1,2,3,4)) {
  plot(m,type=&#39;l&#39;,main=&#39;nugget=0&#39;)
  lines(result$id0u[j,],col=2)
  lines(result$log0u[j,],col=3)
  lines(result$ans[j,],col=4)
  legend(&#39;topleft&#39;,c(&#39;mean&#39;,&#39;ash identity link&#39;,&#39;ash log link&#39;,&#39;anscombe&#39;),lty=c(1,1,1,1),col=c(1,2,3,4))
}</code></pre>
<p><img src="figure/compares.Rmd/unnamed-chunk-3-1.png" width="1152" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of unnamed-chunk-3-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/figure/compares.Rmd/unnamed-chunk-3-1.png" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
</tr>
</tbody>
</table>
<p></details></p>
<p>Now we increase nugget effect to <span class="math inline">\(\sigma=1\)</span>. Obviously, using anscombe transformation, we are estimating <span class="math inline">\(exp(\log(\mu)+N(0,\sigma^2))\)</span> so its mse is large and gives spiky fit.</p>
<pre class="r"><code>result=simu_study(m,sigma=1,nsimu = 4)

mses=lapply(result, function(x){apply(x, 1, function(y){mean((y-m)^2)})})

unlist(lapply(mses, mean))</code></pre>
<pre><code>         idk          idu         id0k         id0u         logk
2.773795e+12 4.929459e+10 5.789335e-01 3.372019e-01 5.332768e+45
        logu        log0k        log0u          ans
6.281977e+09 1.168559e+00 6.925573e-01 1.955617e+00 </code></pre>

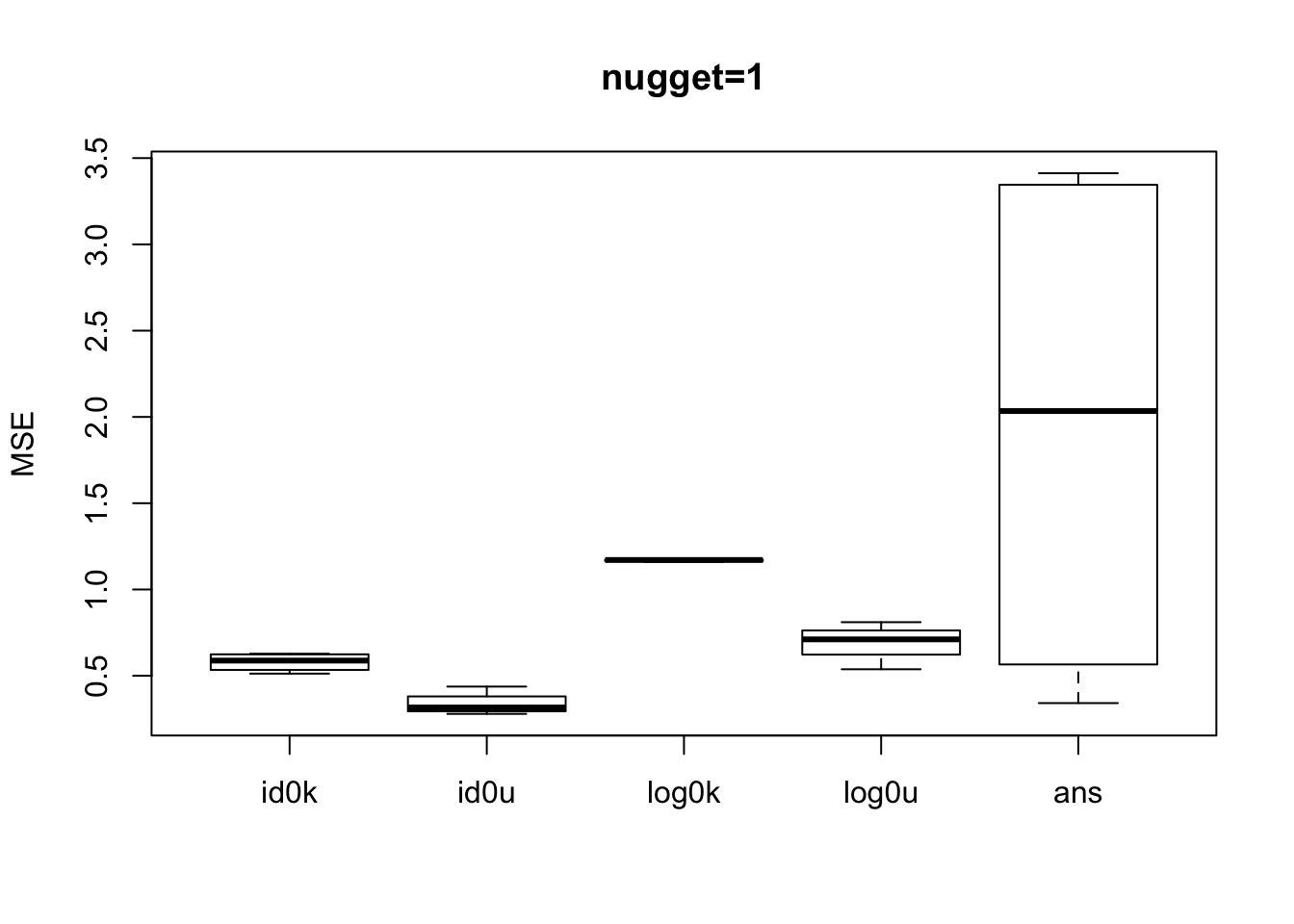

<pre class="r"><code>boxplot(mses[-c(1,2,5,6)],main=&#39;nugget=1&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/compares.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of unnamed-chunk-4-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/figure/compares.Rmd/unnamed-chunk-4-1.png" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
</tr>
</tbody>
</table>
<p></details></p>

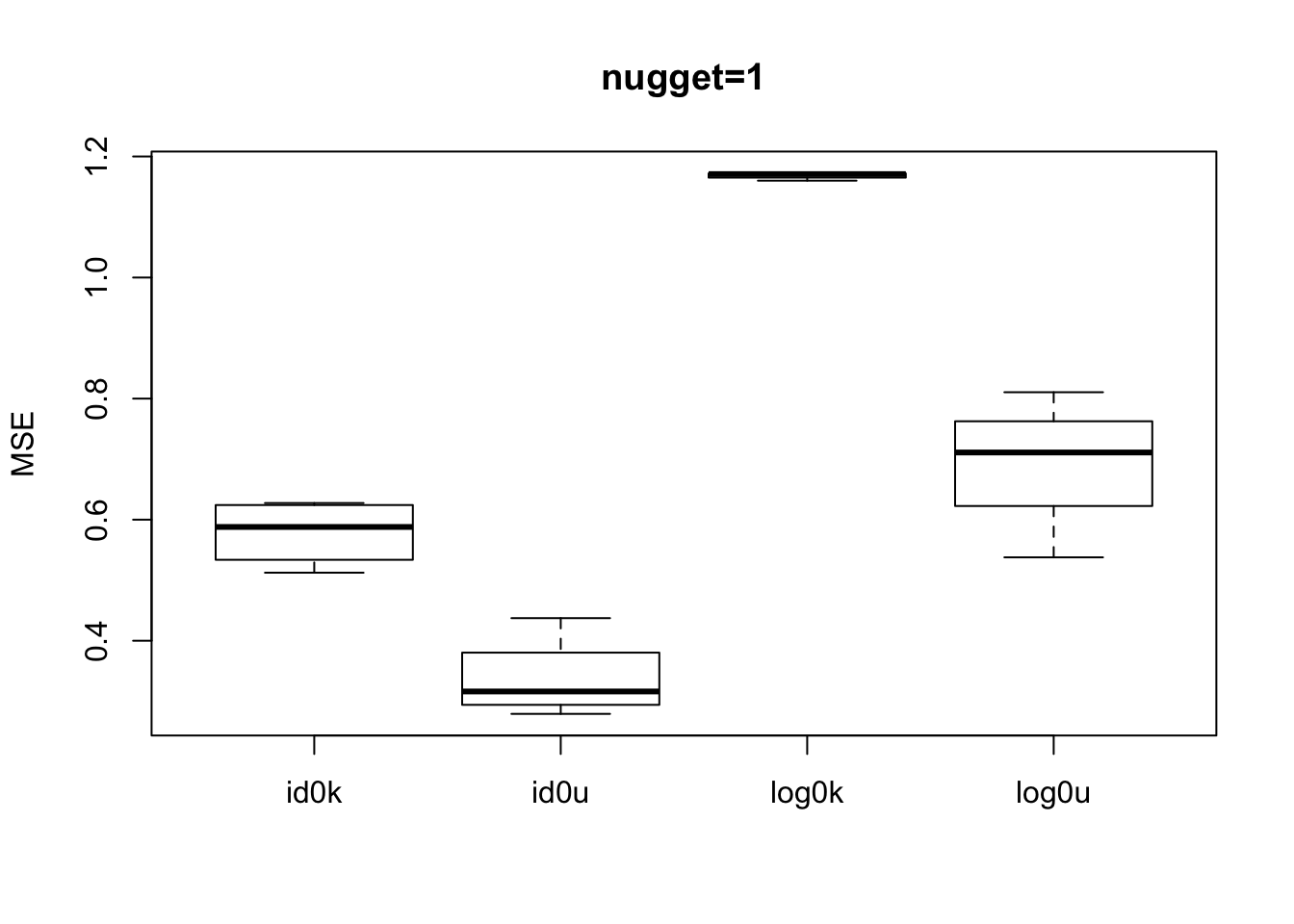

<pre class="r"><code>boxplot(mses[-c(1,2,5,6,9)],main=&#39;nugget=1&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/compares.Rmd/unnamed-chunk-4-2.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of unnamed-chunk-4-2.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/figure/compares.Rmd/unnamed-chunk-4-2.png" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
</tr>
</tbody>
</table>
<p></details></p>

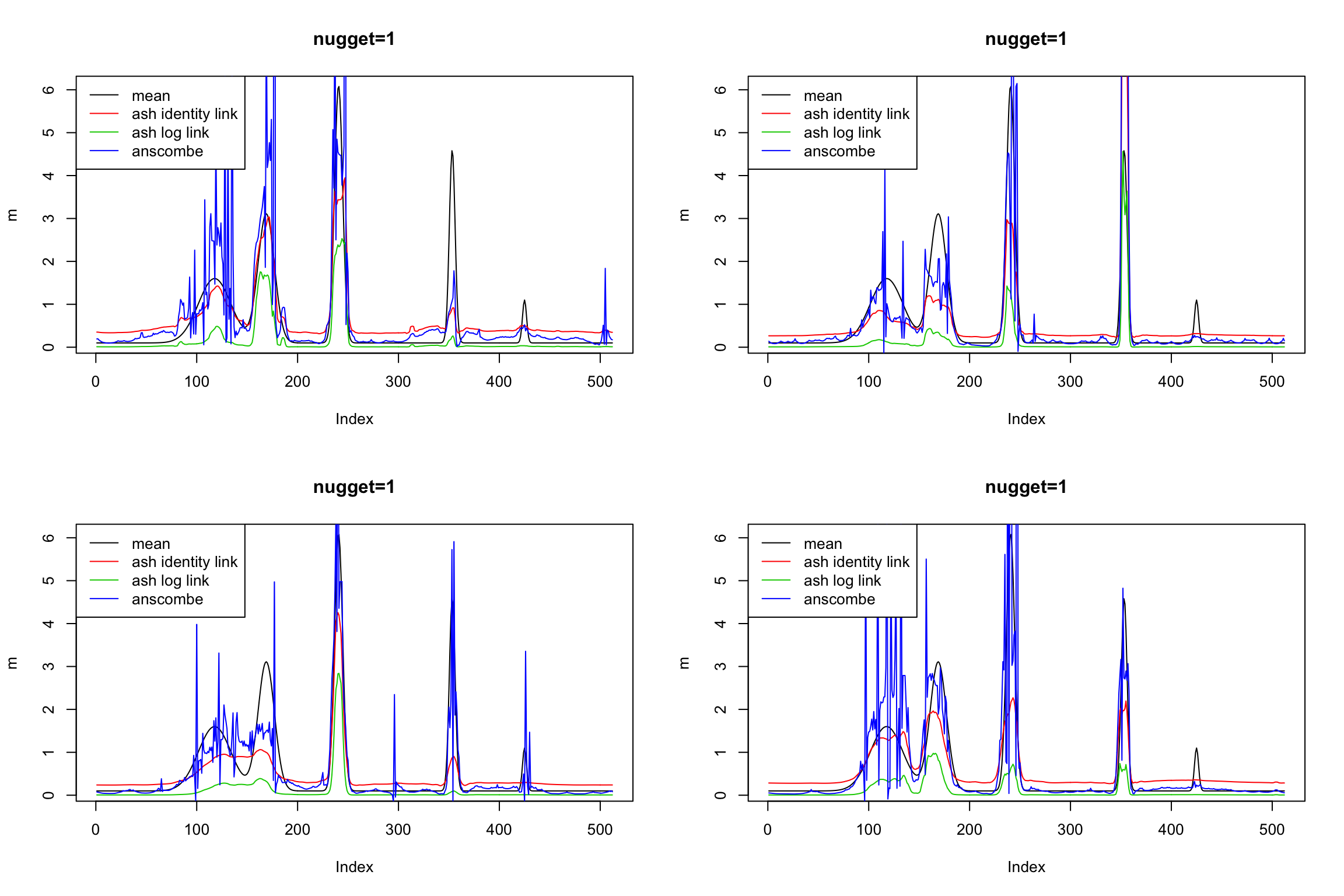

<pre class="r"><code>par(mfrow=c(2,2))

for (j  in c(1,2,3,4)) {
  plot(m,type=&#39;l&#39;,main=&#39;nugget=1&#39;)
  lines(result$id0u[j,],col=2)
  lines(result$log0u[j,],col=3)
  lines(result$ans[j,],col=4)
  legend(&#39;topleft&#39;,c(&#39;mean&#39;,&#39;ash identity link&#39;,&#39;ash log link&#39;,&#39;anscombe&#39;),lty=c(1,1,1,1),col=c(1,2,3,4))
}</code></pre>
<p><img src="figure/compares.Rmd/unnamed-chunk-5-1.png" width="1152" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of unnamed-chunk-5-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/figure/compares.Rmd/unnamed-chunk-5-1.png" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
</tr>
</tbody>
</table>
<p></details></p>
<p>How about a larger mean function? Increase the range to (20,50). Some observations from the plot: 1. Now, known nugget effect gives smaller mse than unkown ones(e.g idk<span class="math inline">\(&lt;\)</span>idu, id0k<span class="math inline">\(&lt;\)</span>id0u,…); 2. Using identity link in lik_pois is still better; 3. ans has smaller mse but from the plots below, idk, logk and ans give very similar estiamtions.</p>
<pre class="r"><code>m=m*5+20

range(m)</code></pre>
<pre><code>[1] 20.50000 50.38158</code></pre>
<pre class="r"><code>result=simu_study(m,sigma=0,nsimu = 4)

mses=lapply(result, function(x){apply(x, 1, function(y){mean((y-m)^2)})})

unlist(lapply(mses, mean))</code></pre>
<pre><code>     idk      idu     id0k     id0u     logk     logu    log0k    log0u
2.903710 2.899550 3.317807 3.663308 3.054792 3.054326 3.317807 3.663308
     ans
2.815178 </code></pre>
<pre class="r"><code>boxplot(mses,main=&#39;nugget=0&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/compares.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of unnamed-chunk-6-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/figure/compares.Rmd/unnamed-chunk-6-1.png" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
</tr>
</tbody>
</table>
<p></details></p>
<p>Plots compare idk, logk and ans:</p>
<pre class="r"><code>par(mfrow=c(2,2))

for (j  in c(1,2,3,4)) {
  plot(m,type=&#39;l&#39;,main=&#39;nugget=0&#39;)
  lines(result$idk[j,],col=2)
  lines(result$logk[j,],col=3)
  lines(result$ans[j,],col=4)
  legend(&#39;topleft&#39;,c(&#39;mean&#39;,&#39;ash identity link&#39;,&#39;ash log link&#39;,&#39;anscombe&#39;),lty=c(1,1,1,1),col=c(1,2,3,4))
}</code></pre>
<p><img src="figure/compares.Rmd/unnamed-chunk-7-1.png" width="1152" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of unnamed-chunk-7-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/DongyueXie/smash-gen/blob/2a5f8ddcf5d8f8bbc77438d733061cc1689735e0/docs/figure/compares.Rmd/unnamed-chunk-7-1.png" target="_blank">2a5f8dd</a>
</td>
<td style="text-align:left;">
Dongyue Xie
</td>
<td style="text-align:left;">
2018-10-18
</td>
</tr>
</tbody>
</table>
<p></details></p>
</div>
<div id="summary" class="section level1">
<h1>Summary</h1>
<p>Maybe can develop a version of anscombe to deal with nugget effect? Also is nugget effect necessarily defined as <span class="math inline">\(exp(\log(\mu)+\sigma^2)\)</span>?</p>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] smashr_1.2-0 ashr_2.2-7

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.18      knitr_1.20        whisker_0.3-2
 [4] magrittr_1.5      workflowr_1.1.1   REBayes_1.3
 [7] MASS_7.3-50       pscl_1.5.2        doParallel_1.0.14
[10] SQUAREM_2017.10-1 lattice_0.20-35   foreach_1.4.4
[13] stringr_1.3.1     caTools_1.17.1.1  tools_3.5.1
[16] parallel_3.5.1    grid_3.5.1        data.table_1.11.6
[19] R.oo_1.22.0       git2r_0.23.0      htmltools_0.3.6
[22] iterators_1.0.10  assertthat_0.2.0  yaml_2.2.0
[25] rprojroot_1.3-2   digest_0.6.17     Matrix_1.2-14
[28] bitops_1.0-6      codetools_0.2-15  R.utils_2.7.0
[31] evaluate_0.11     rmarkdown_1.10    wavethresh_4.6.8
[34] stringi_1.2.4     compiler_3.5.1    Rmosek_8.0.69
[37] backports_1.1.2   R.methodsS3_1.7.1 truncnorm_1.0-8  </code></pre>
</div>
</div>

<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html.  This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    "HTML-CSS": { availableFonts: ["TeX"] }
  });
</script>

<hr>
<p>
  This reproducible <a href="http://rmarkdown.rstudio.com">R Markdown</a>
  analysis was created with
  <a href="https://github.com/jdblischak/workflowr">workflowr</a> 1.1.1
</p>
<hr>


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
