Gaussian models are not robust to outliers so the smash-gen algorithm does not converge when the nugget effect is large. One solution might be setting the very highest resolution wavelet coefficients to 0.

library(smashr)
library(wavethresh)

Warning: package 'wavethresh' was built under R version 3.4.3

Loading required package: MASS

WaveThresh: R wavelet software, release 4.6.8, installed

Copyright Guy Nason and others 1993-2016

Note: nlevels has been renamed to nlevelsWT

#' smash generaliation function(set the highest resolution wavelet coeffs to 0)


#' @param x: a vector of observations
#' @param sigma: standard deviations, scalar.
#' @param family: choice of wavelet basis to be used, as in wavethresh.
#' @param niter: number of iterations for IRLS
#' @param tol: tolerance of the criterion to stop the iterations
#' @param robust: whether set the highest resolution wavelet coeffs to 0

smash.gen=function(x,sigma,family='DaubExPhase',filter.number = 1, niter=30,tol=1e-2,robust=FALSE){
  mu=c()
  s=c()
  y=c()
  munorm=c()
  mu=rbind(mu,rep(mean(x),length(x)))
  s=rbind(s,rep(1/mu[1],length(x)))
  y0=log(mean(x))+(x-mean(x))/mean(x)
  #######set the highest resolution wavelet coeffs to 0
  if(robust){
    wds=wd(y0,family = family,filter.number = filter.number)
    wtd=threshold(wds, levels = wds$nlevels-1,  policy="manual",value = Inf)
    y=rbind(y,wr(wtd))
  }else{
    y=rbind(y,y0)
  }
  for(i in 1:niter){
    vars=ifelse(s[i,]<0,1e-8,s[i,])
    mu.hat=smash.gaus(y[i,],sigma=sqrt(vars))#mu.hat is \mu_t+E(u_t|y)

    mu=rbind(mu,mu.hat)
    munorm[i]=norm(mu.hat-mu[i,],'2')
    if(munorm[i]<tol){
      break
    }
    #update m and s_t
    mt=exp(mu.hat)
    s=rbind(s,1/mt)
    y=rbind(y,log(mt)+(x-mt)/mt)


  }
  mu.hat=smash.gaus(y[i,],sigma = sqrt(sigma^2+ifelse(s[i,]<0,1e-8,s[i,])))
  return(list(mu.hat=mu.hat,mu=mu,s=s,y=y,munorm=munorm))
}

#' Simulation study comparing smash and smashgen

simu_study=function(m,sigma,seed=1234,
                    niter=30,family='DaubExPhase',tol=1e-2,
                    reflect=FALSE,robust=FALSE){
  set.seed(seed)
  lamda=exp(m+rnorm(length(m),0,sigma))
  x=rpois(length(m),lamda)
  #fit data
  smash.out=smash.poiss(x,reflect=reflect)
  smash.gen.out=smash.gen(x,sigma=sigma,niter=niter,family = family,tol=tol,robust=robust)
  return(list(smash.out=smash.out,smash.gen.out=exp(smash.gen.out$mu.hat),smash.gen.est=smash.gen.out,x=x,loglik=smash.gen.out$loglik))
}

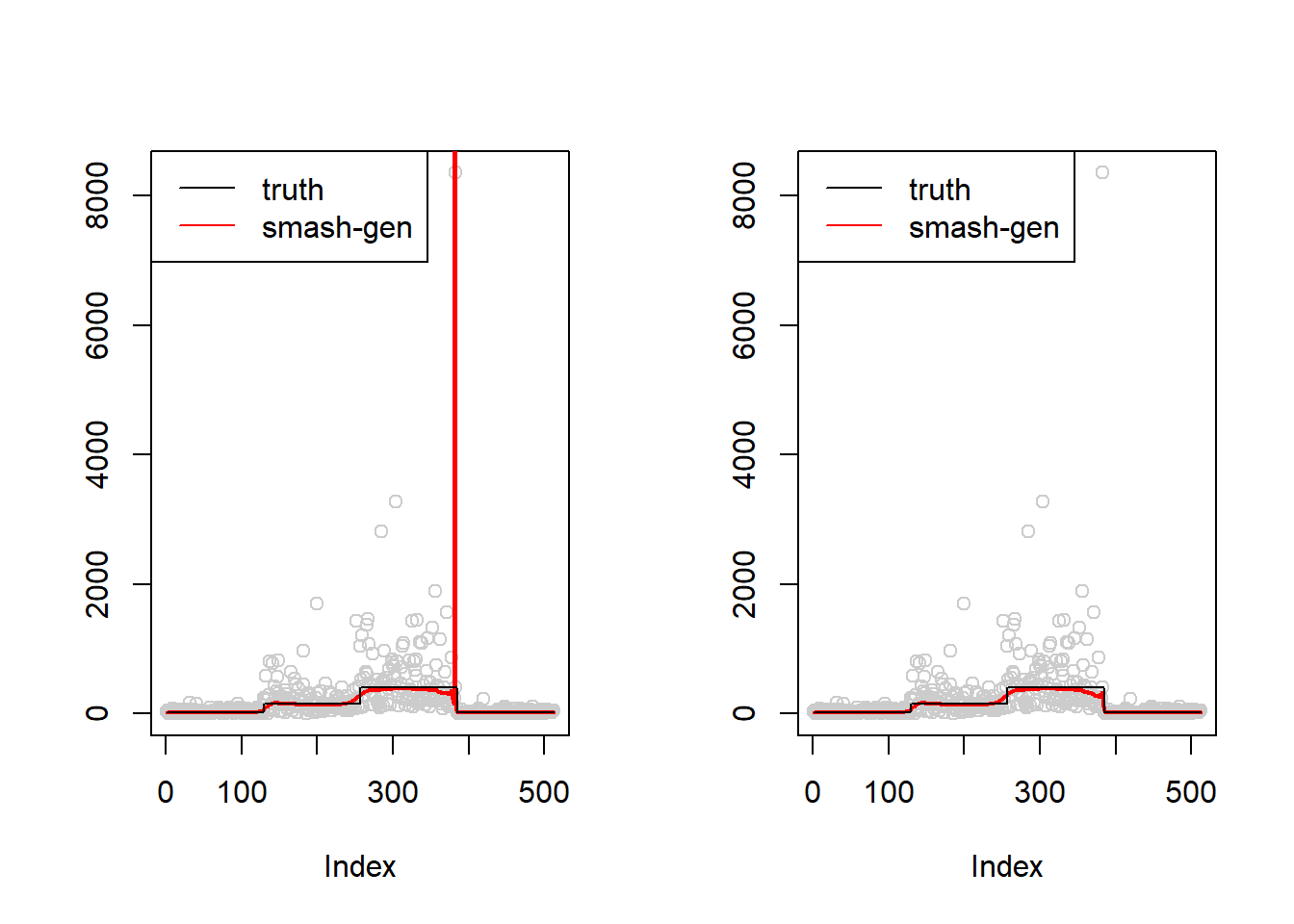

m=c(rep(3,128), rep(5, 128), rep(6, 128), rep(3, 128))


par(mfrow = c(1,2))
simu.out=simu_study(m,1,seed=2132)
plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topleft",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

simu.out=simu_study(m,1,seed=2132,robust = T)
plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topleft",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

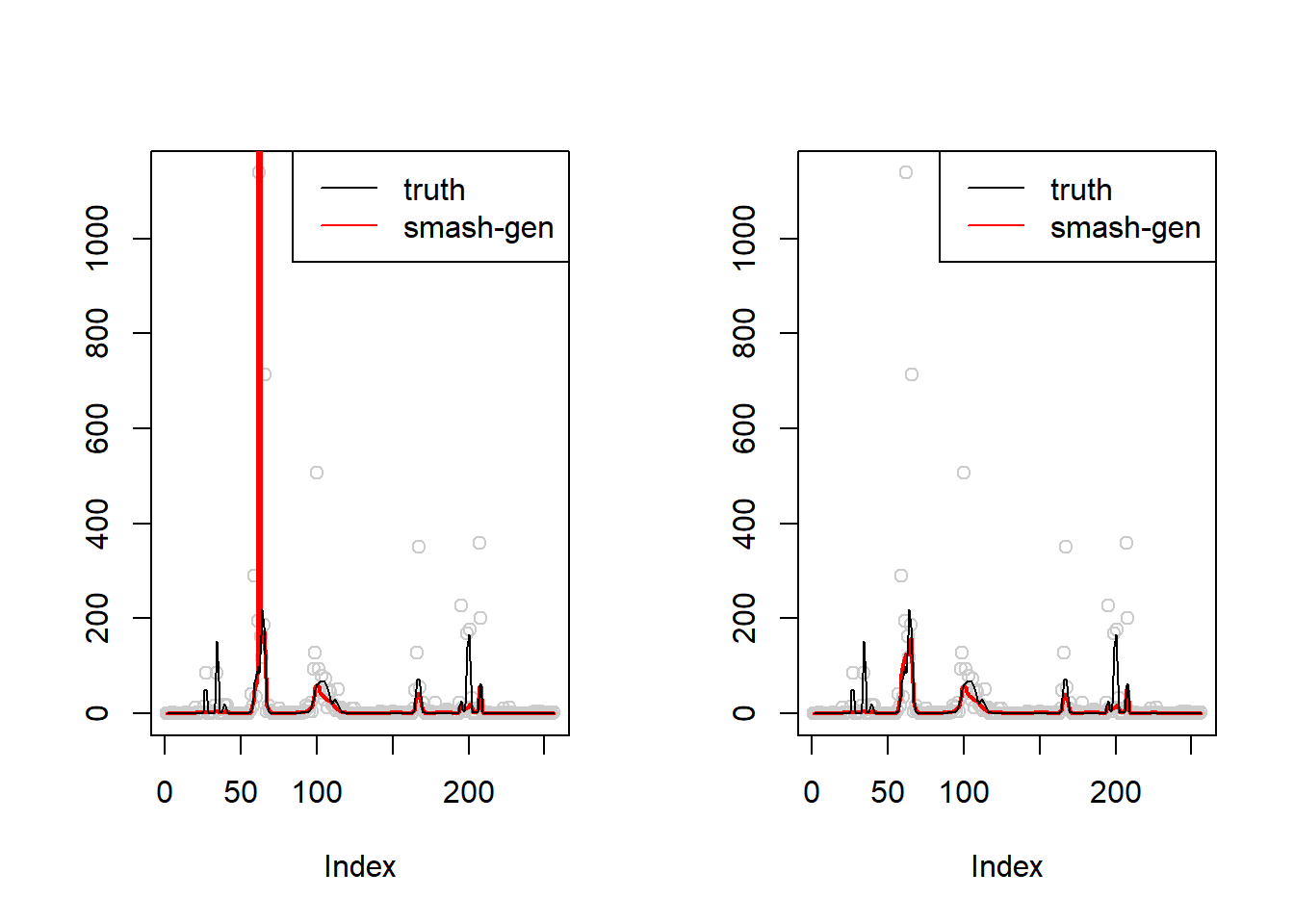

#bumps
m=seq(0,1,length.out = 256)
h = c(4, 5, 3, 4, 5, 4.2, 2.1, 4.3, 3.1, 5.1, 4.2)
w = c(0.005, 0.005, 0.006, 0.01, 0.01, 0.03, 0.01, 0.01, 0.005,0.008,0.005)
t=c(.1,.13,.15,.23,.25,.4,.44,.65,.76,.78,.81)
f = c()
for(i in 1:length(m)){
  f[i]=sum(h*(1+((m[i]-t)/w)^4)^(-1))
}

par(mfrow = c(1,2))
simu.out=simu_study(f,1)
plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(f))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))
simu.out=simu_study(f,1,robust = T)
plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(f))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))
