Methods

Let \(X\sim Binomial(n,p)\) then \(E(X)=np, Var(X)=np(1-p)\). Poisson distribution is an approximation of binomial distribution when \(n\) is large and \(p\) is small. A rule of thumb is that \(n\geq 20, p\leq 0.05\).

Derivation: Let \(\lambda=np\)

\[\frac{n!}{x!(n-x)!}p^x(1-p)^{n-x}=\frac{n(n-1)...(n-k+1)}{x!}(\lambda/n)^x(1-\lambda/n)^{n-x}\approx \frac{\lambda^x}{x!}(1-\lambda/n)^{n-x}\] as \(n\to \infty\). Since \(lim_{n\to \infty}(1-\lambda/n)^{n}=e^{-\lambda}\) and \(lim_{n\to \infty}(1-\lambda/n)^{-x}=1\), we have \[\frac{n!}{x!(n-x)!}p^x(1-p)^{n-x}\approx \frac{\lambda^x e^{-\lambda}}{x!}.\]

If we have binomial observation \(X_t\) with \(n_t\) and treat it as Poisson observation, we can do the following expansion: \[Y_t=\log(X_t)=\log(n_tp_t)+\frac{X_t-n_tp_t}{n_tp_t}=\log(n_t)+\log(p_t)+\frac{X_t-n_tp_t}{n_tp_t}.\] This leads to \[Y_t-\log(n_t)=\log(p_t)+\frac{X_t-n_tp_t}{n_tp_t}.\]

Experiments

We compare the performance of smashgen - binomial and smashgen - poi_binom, as well as Translation Invariant (TI) thresholding (Coifman and Donoho, 1995), which is one of the best methods in a large-scale simulation study in Antoniadis et al. (2001), and Ebayesthresh (Johnstone and Silverman, 2005b).

For all experiments, T is set to be 256, nugget effect \(\sigma=1\). The mean squared errors are reported and the plots are served as visual aids.

library(smashrgen)
library(ggplot2)
library(EbayesThresh)

simu_study=function(p,sigma=1,ntri,nsimu=100,seed=12345,
                    niter=1,family='DaubExPhase',ashp=TRUE,verbose=FALSE,robust=FALSE,
                    tol=1e-2){
  set.seed(seed)
  smash.binom.err=c()
  smash.poibinom.err=c()
  ti.thresh.err=c()
  eb.thresh.err=c()
  n=length(p)
  target=exp(p)/(1+exp(p))
  for(k in 1:nsimu){
    ng=rnorm(n,0,sigma)
    m=exp(p+ng)
    q=m/(1+m)
    x=rbinom(n,ntri,q)
    #fit data
    smash.binom.out=smash_gen(x,dist_family = 'binomial',y_var_est='smashu',ntri=ntri)
    smash.poibinom.out=smash_gen(x,dist_family = 'poi_binom',y_var_est='smashu',ntri=ntri)
    ti.thresh.out=ti.thresh(x/ntri,method='rmad')
    eb.thresh.out=waveti.ebayes(x/ntri)
    #errors
    smash.binom.err[k]=mse(target,smash.binom.out)
    smash.poibinom.err[k]=mse(target,smash.poibinom.out)
    ti.thresh.err[k]=mse(target,ti.thresh.out)
    eb.thresh.err[k]=mse(target,eb.thresh.out)
  }
  return(list(est=list(smash.binom.out=smash.binom.out,smash.poibinom.out=smash.poibinom.out, ti.thresh.out=ti.thresh.out,eb.thresh.out=eb.thresh.out,x=x),
              err=data.frame(smash.binom=smash.binom.err,smash.poibinom=smash.poibinom.err, ti.thresh=ti.thresh.err,eb.thresh=eb.thresh.err)))
}

waveti.ebayes = function(x, filter.number = 10, family = "DaubLeAsymm", min.level = 3) {
    n = length(x)
    J = log2(n)
    x.w = wd(x, filter.number, family, type = "station")
    for (j in min.level:(J - 1)) {
        x.pm = ebayesthresh(accessD(x.w, j))
        x.w = putD(x.w, j, x.pm)
    }
    mu.est = AvBasis(convert(x.w))
    return(mu.est)
}

Constant trend

\(ntri\) small, \(p\) large

The number of trials are generated from a Poisson distribution with \(\lambda=5\). \(p\) is around 0.8.

n=256
p=rep(1.5,n)
set.seed(111)
ntri=rpois(n,5)+1
result=simu_study(p,ntri=ntri)

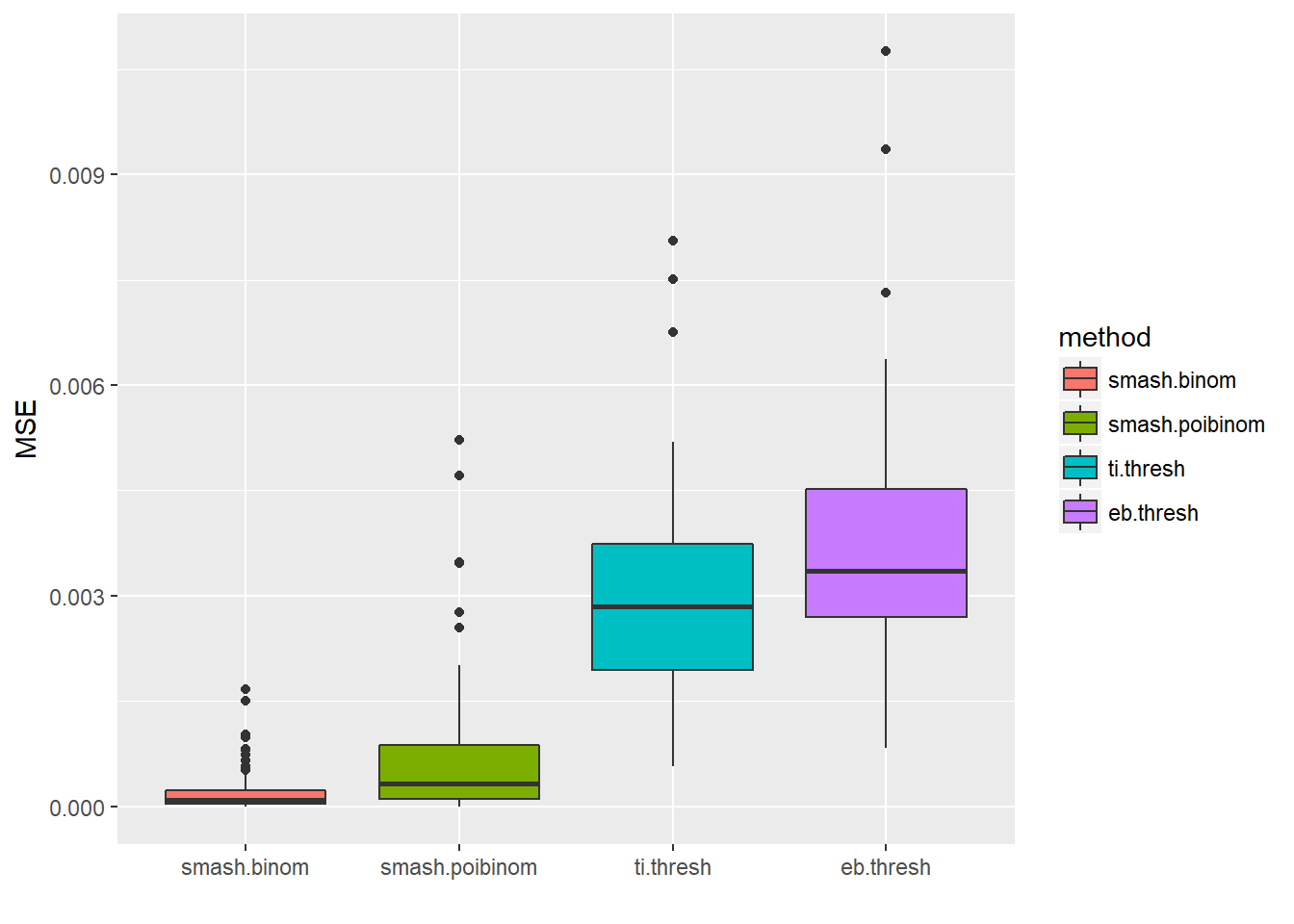

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

Expand here to see past versions of unnamed-chunk-2-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
  0.0002064033   0.0006906048   0.0029693084   0.0036475976

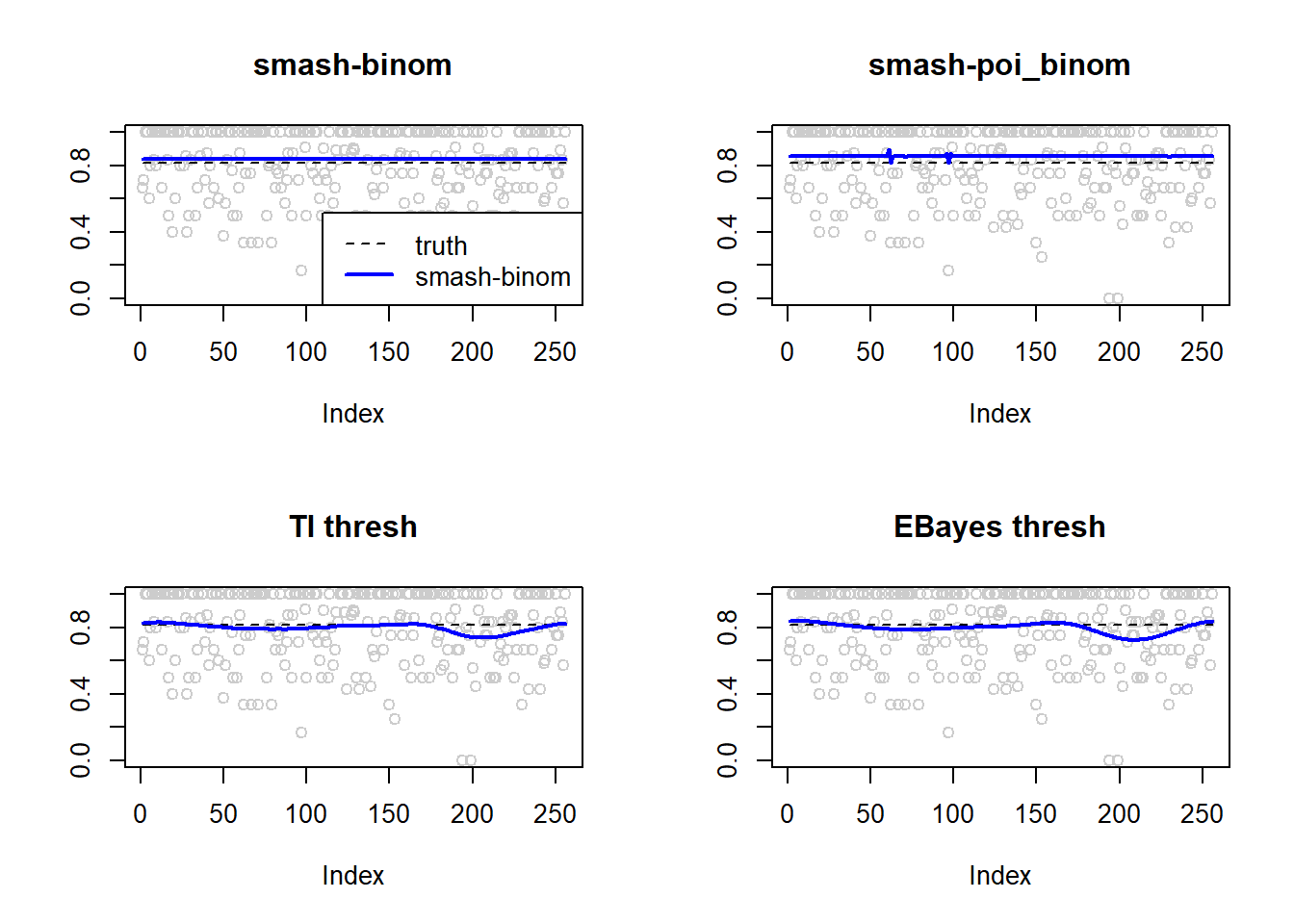

par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)
legend("bottomright", # places a legend at the appropriate place
       c("truth","smash-binom"), # puts text in the legend
       lty=c(2,1), # gives the legend appropriate symbols (lines)
       lwd=c(1,2),
       cex = 1,
       col=c("black","blue"))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

Expand here to see past versions of unnamed-chunk-2-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

\(ntri\) large, \(p\) large

We add 44 to the \(ntri\) above so that its mean is around 50.

n=256
p=rep(1.5,n)
set.seed(111)
ntri=ntri+44
result=simu_study(p,ntri=ntri)

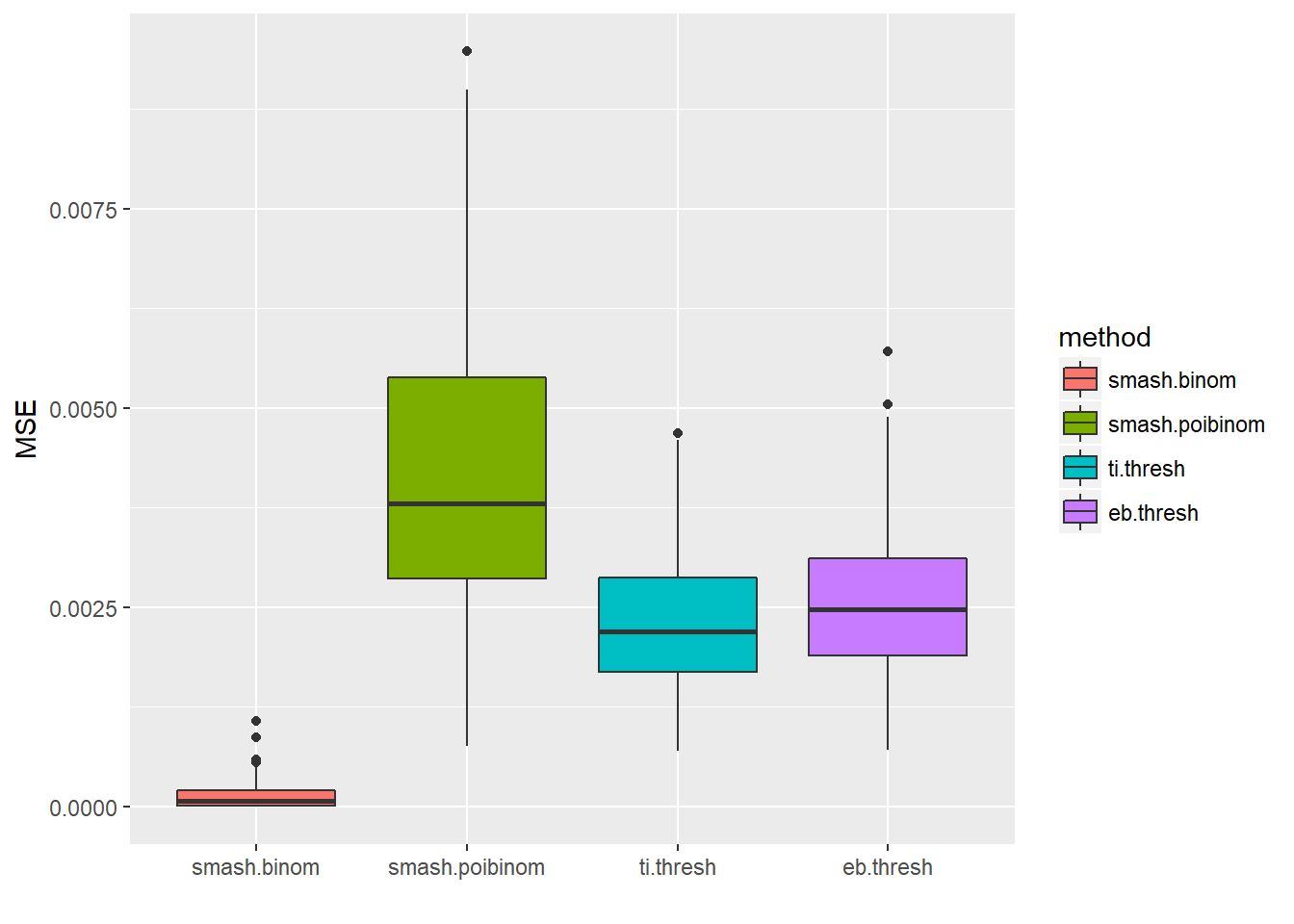

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

Expand here to see past versions of unnamed-chunk-3-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
  0.0001524936   0.0041117817   0.0023245279   0.0026075416

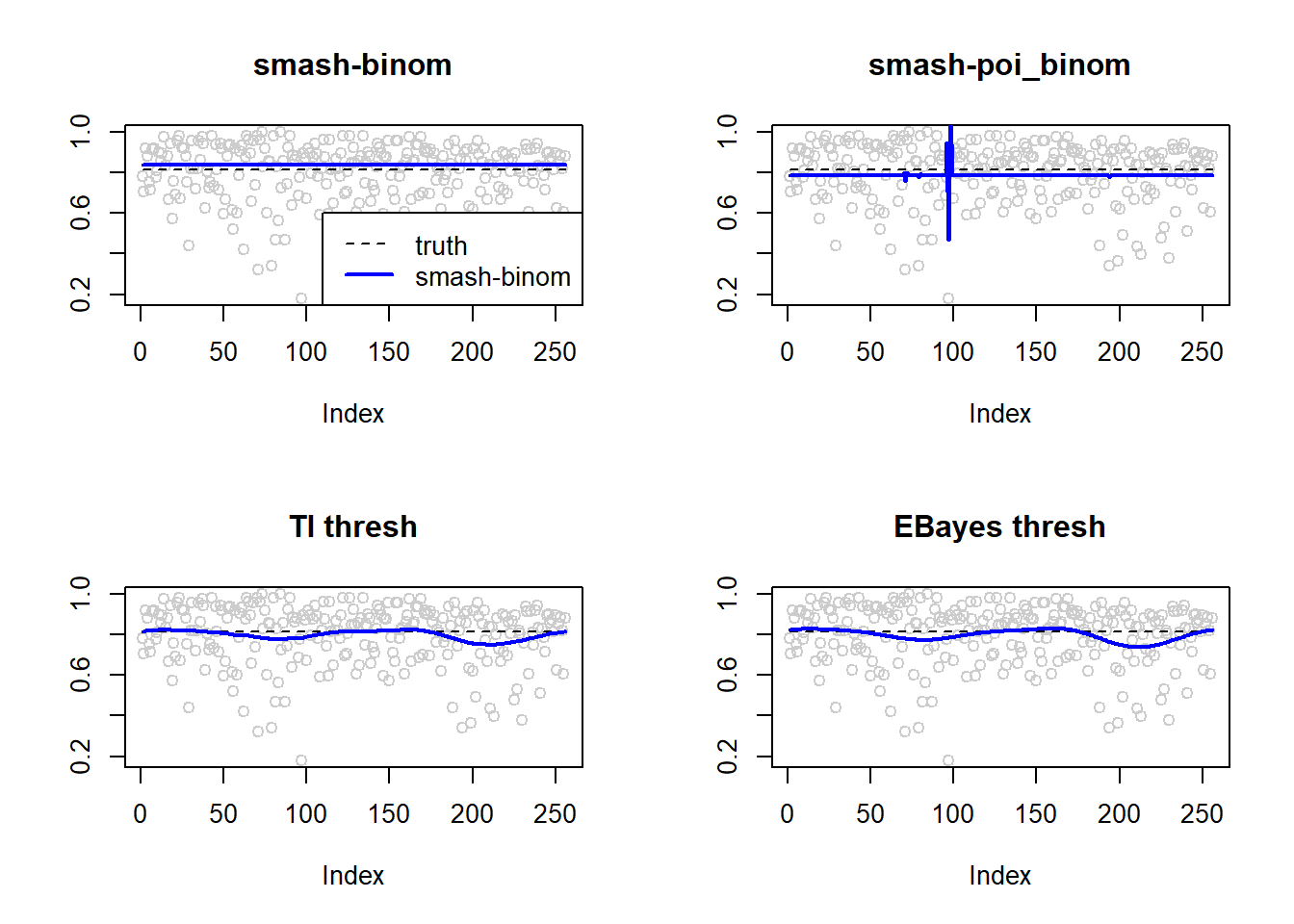

par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)
legend("bottomright", # places a legend at the appropriate place
       c("truth","smash-binom"), # puts text in the legend
       lty=c(2,1), # gives the legend appropriate symbols (lines)
       lwd=c(1,2),
       cex = 1,
       col=c("black","blue"))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

Expand here to see past versions of unnamed-chunk-3-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

\(ntri\) large, \(p\) small

\(p\) is around 0.05.

n=256
p=rep(-3,n)
set.seed(111)
ntri=ntri
result=simu_study(p,ntri=ntri)

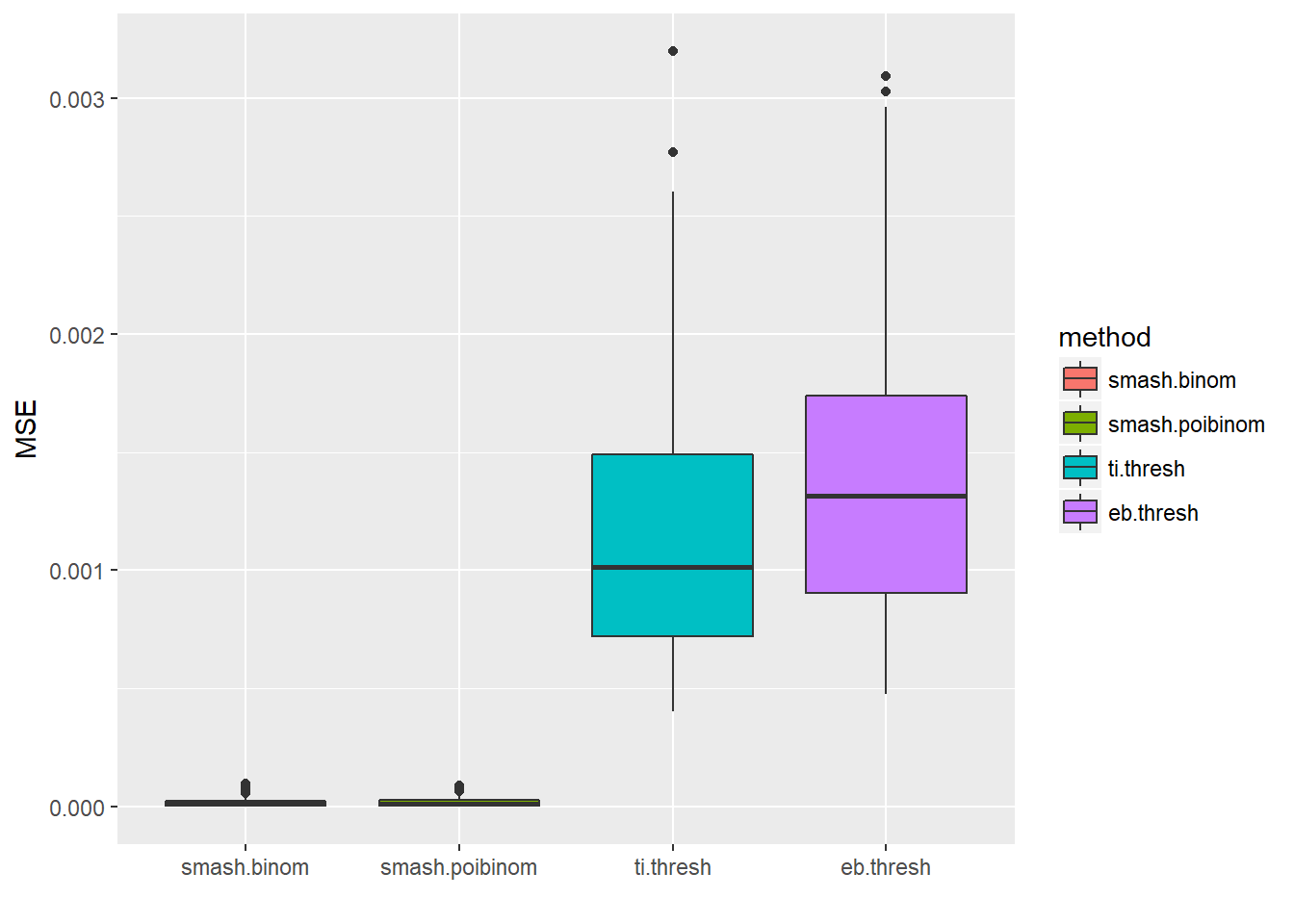

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

Expand here to see past versions of unnamed-chunk-4-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

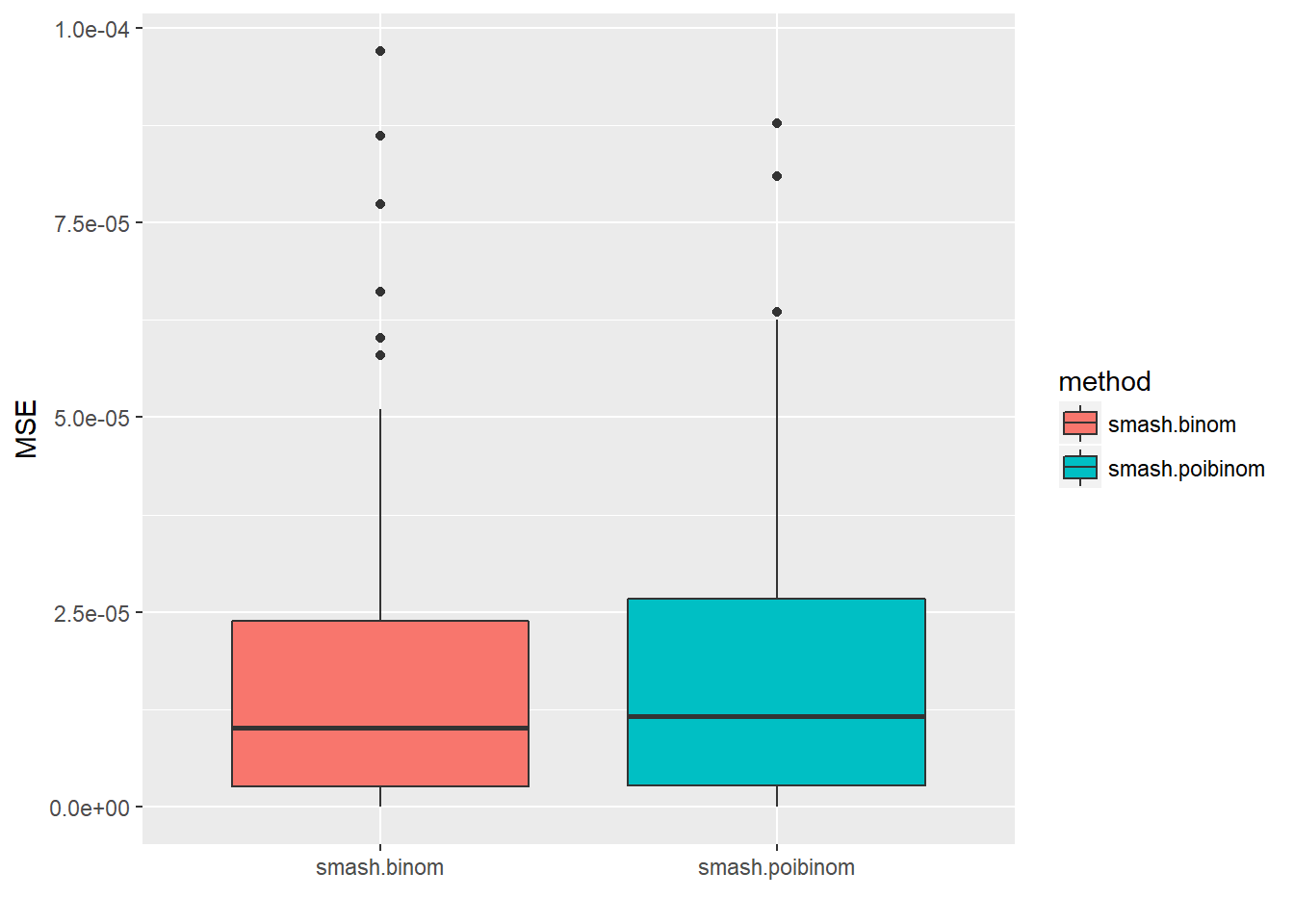

ggplot(df2gg(result$err[,1:2]),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

Expand here to see past versions of unnamed-chunk-4-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
  1.638404e-05   1.696551e-05   1.183316e-03   1.367054e-03

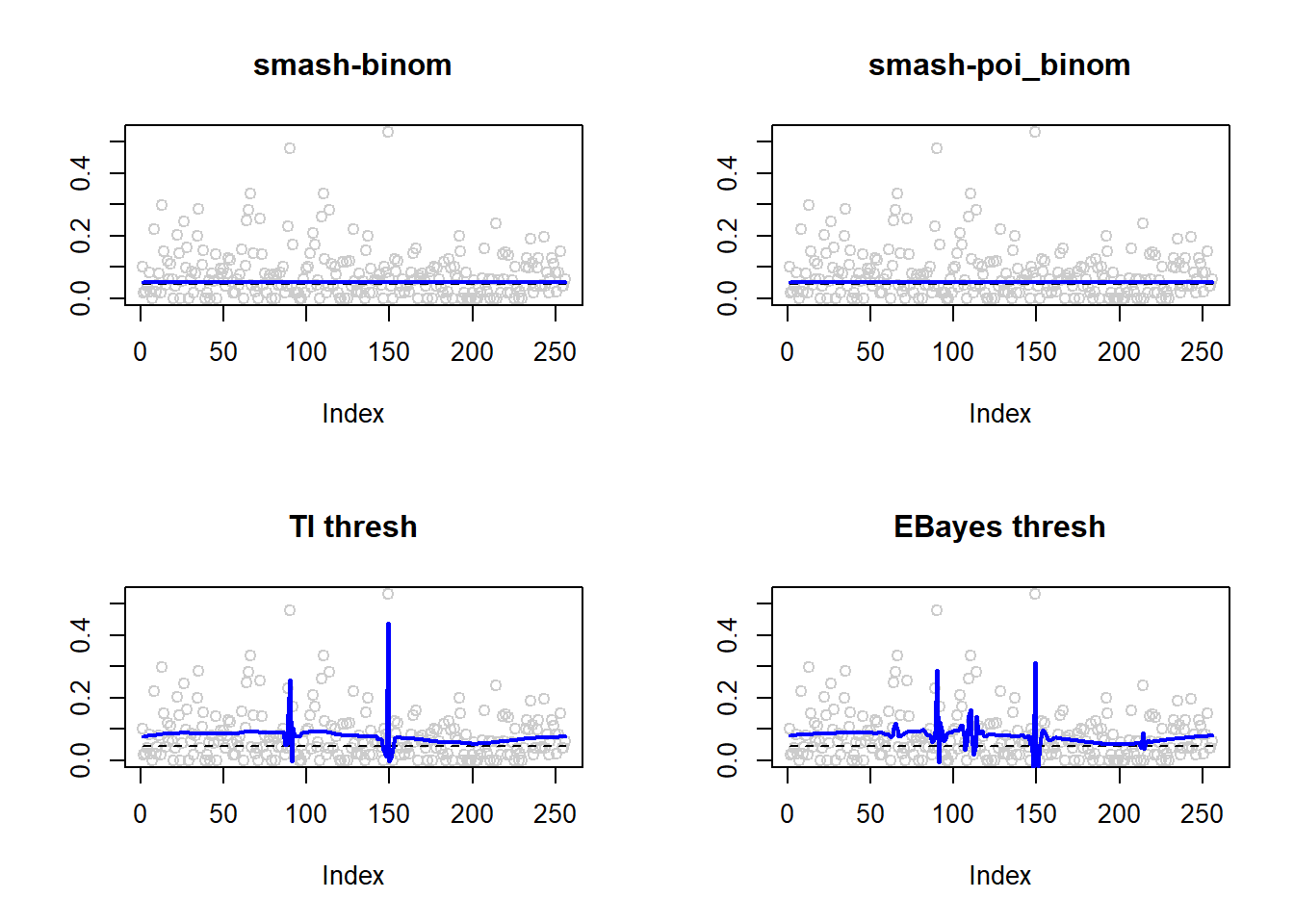

par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

Expand here to see past versions of unnamed-chunk-4-3.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

As expected, when \(n\) is large and \(p\) is small, Poisson distribution is a good approximation to binomial distribution.

\(ntri\) small, \(p\) small

n=256
p=rep(-3,n)
set.seed(111)
ntri=rpois(n,5)+1
result=simu_study(p,ntri=ntri)

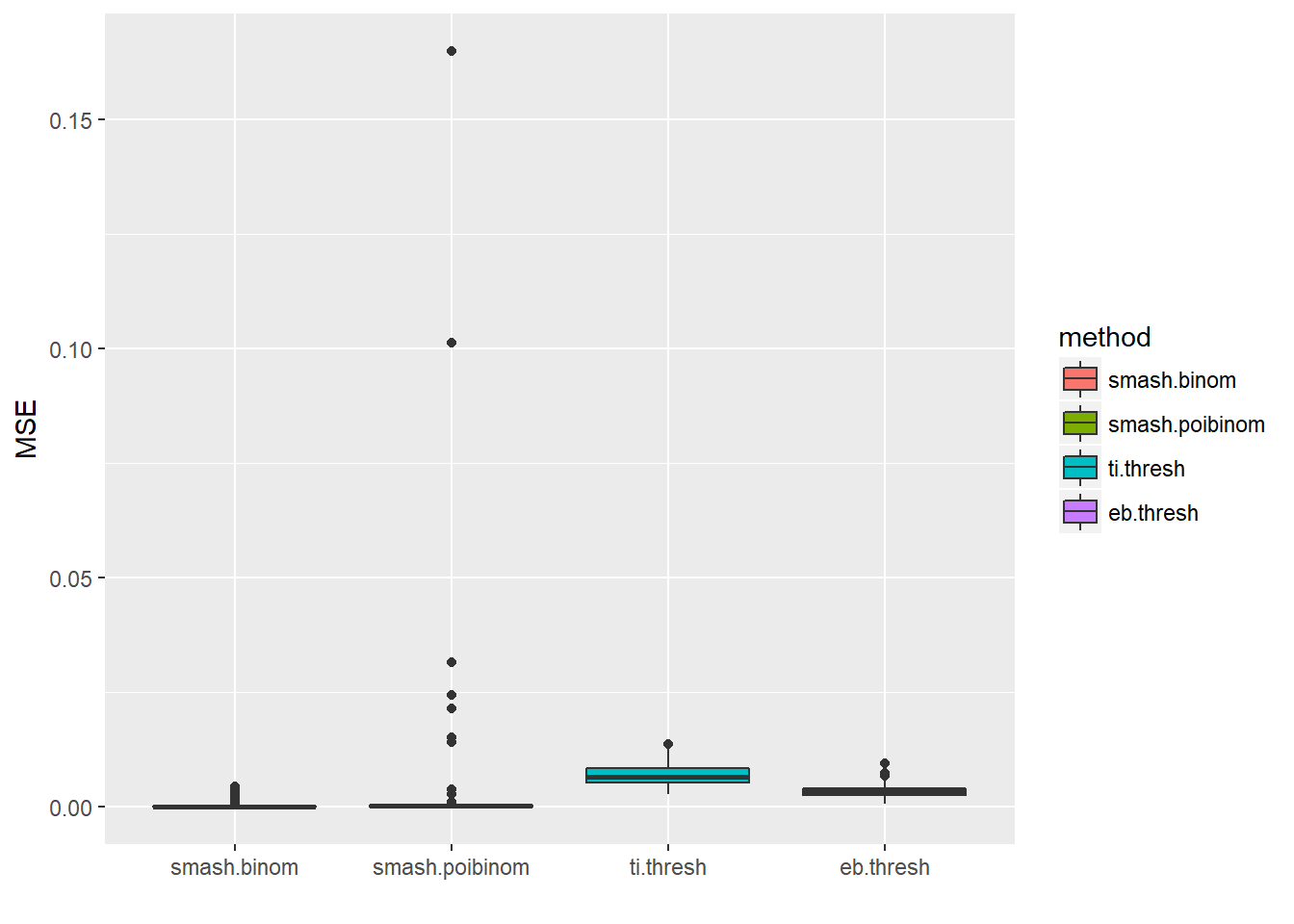

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

Expand here to see past versions of unnamed-chunk-5-1.png:
Version Author Date
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
  0.0004194395   0.0039619590   0.0068907435   0.0034840933

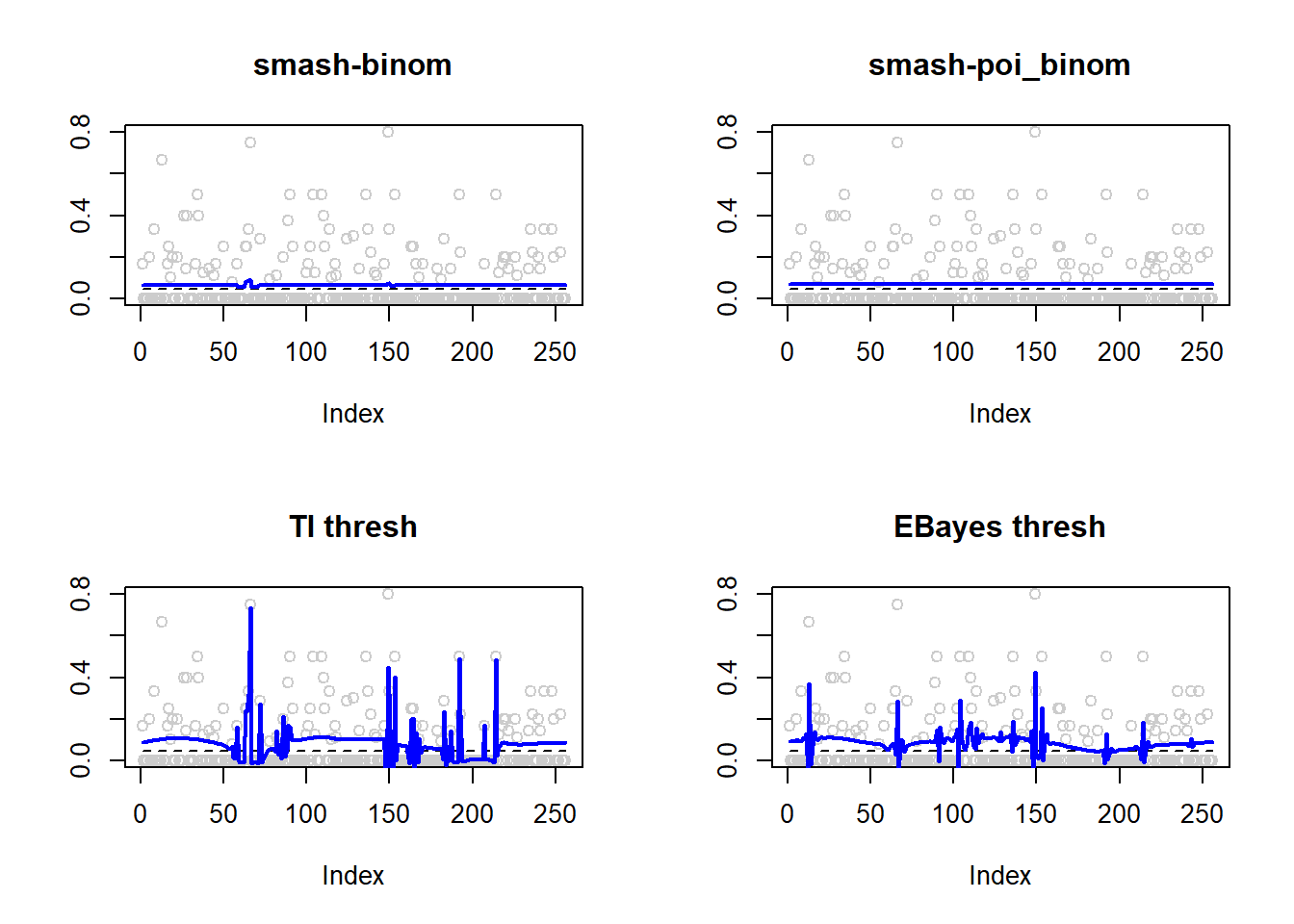

par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

Expand here to see past versions of unnamed-chunk-5-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

Steps

Small \(n\)

p=c(rep(-2,64), rep(0, 64), rep(2, 64), rep(-2, 64))
set.seed(111)
ntri=rpois(256,5)+1
result=simu_study(p,ntri=ntri)

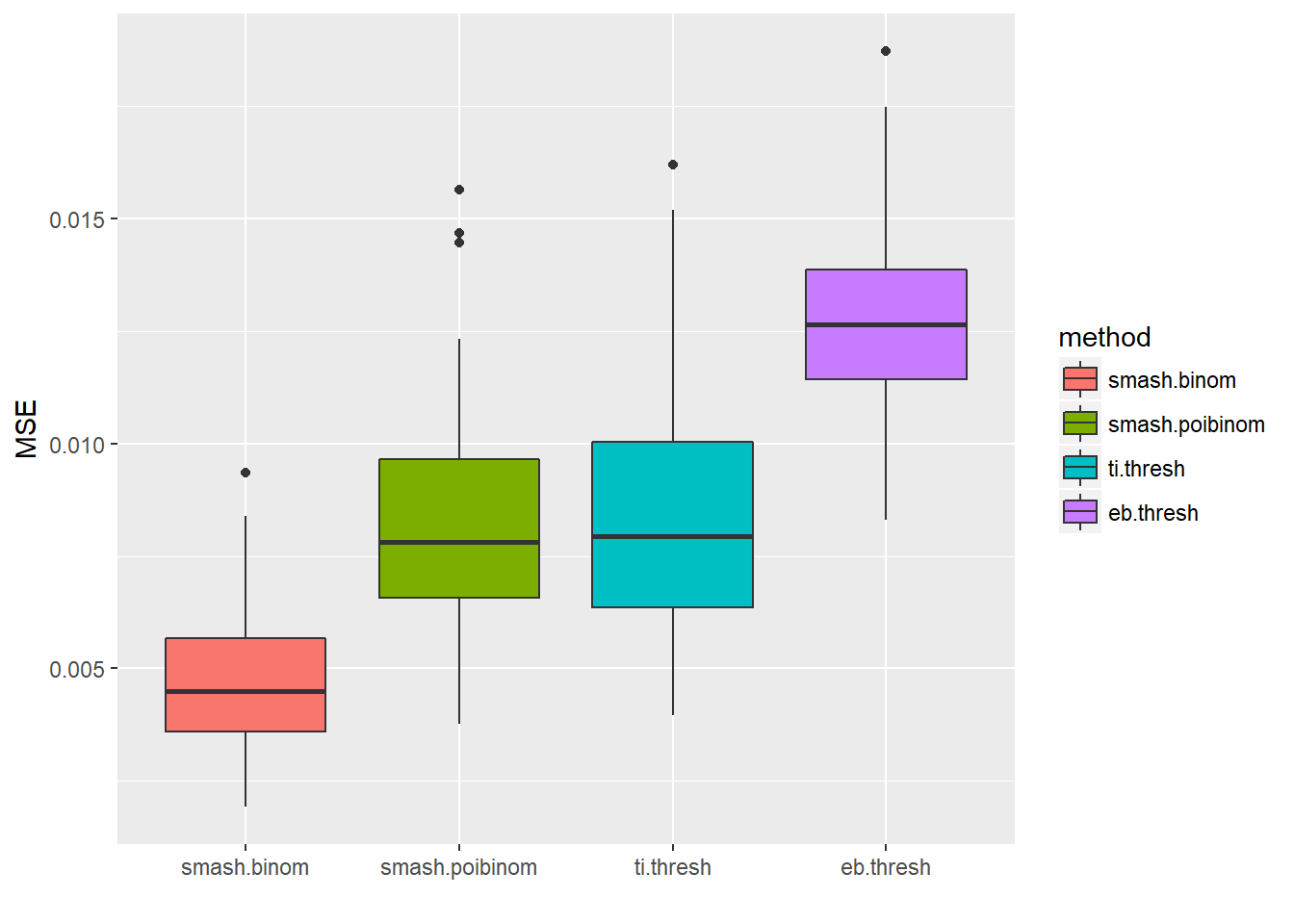

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

Expand here to see past versions of unnamed-chunk-6-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
   0.004713551    0.008199597    0.008406726    0.012840545

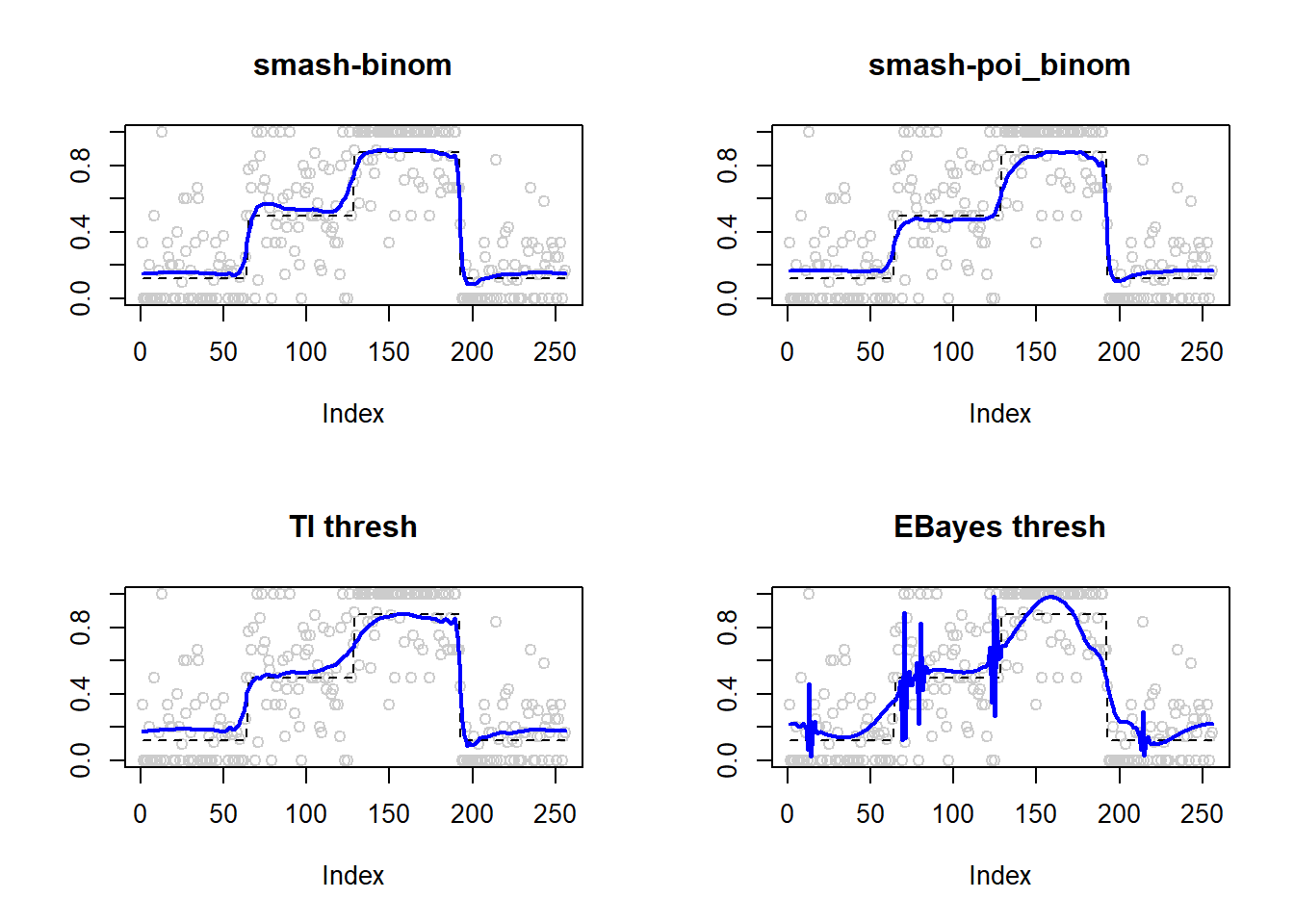

par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)

plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

Expand here to see past versions of unnamed-chunk-6-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

Large \(n\)

p=c(rep(-2,64), rep(0, 64), rep(2, 64), rep(-2, 64))
set.seed(111)
ntri=ntri+44
result=simu_study(p,ntri=ntri)

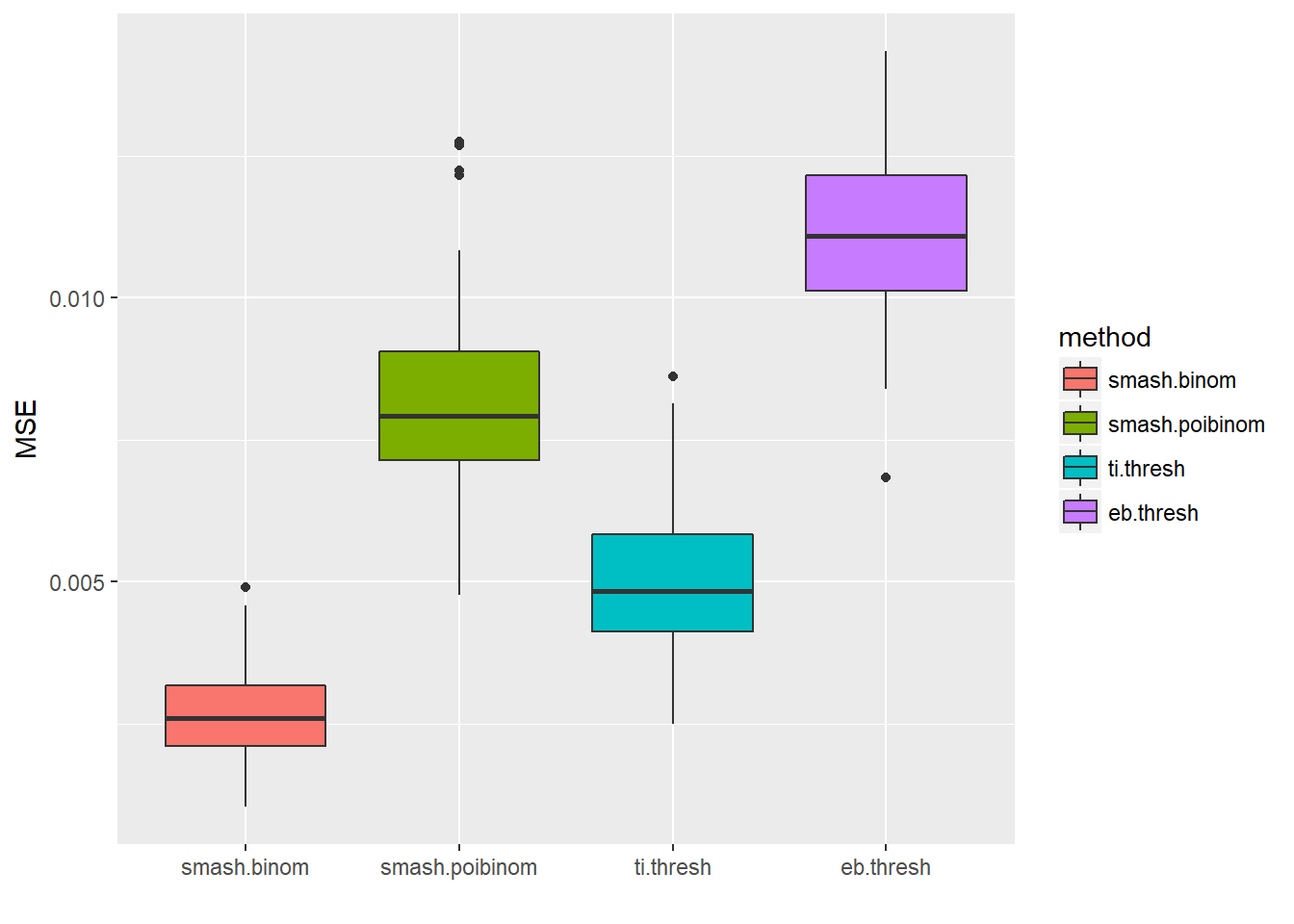

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

Expand here to see past versions of unnamed-chunk-7-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
   0.002653184    0.008115945    0.005058030    0.011180475

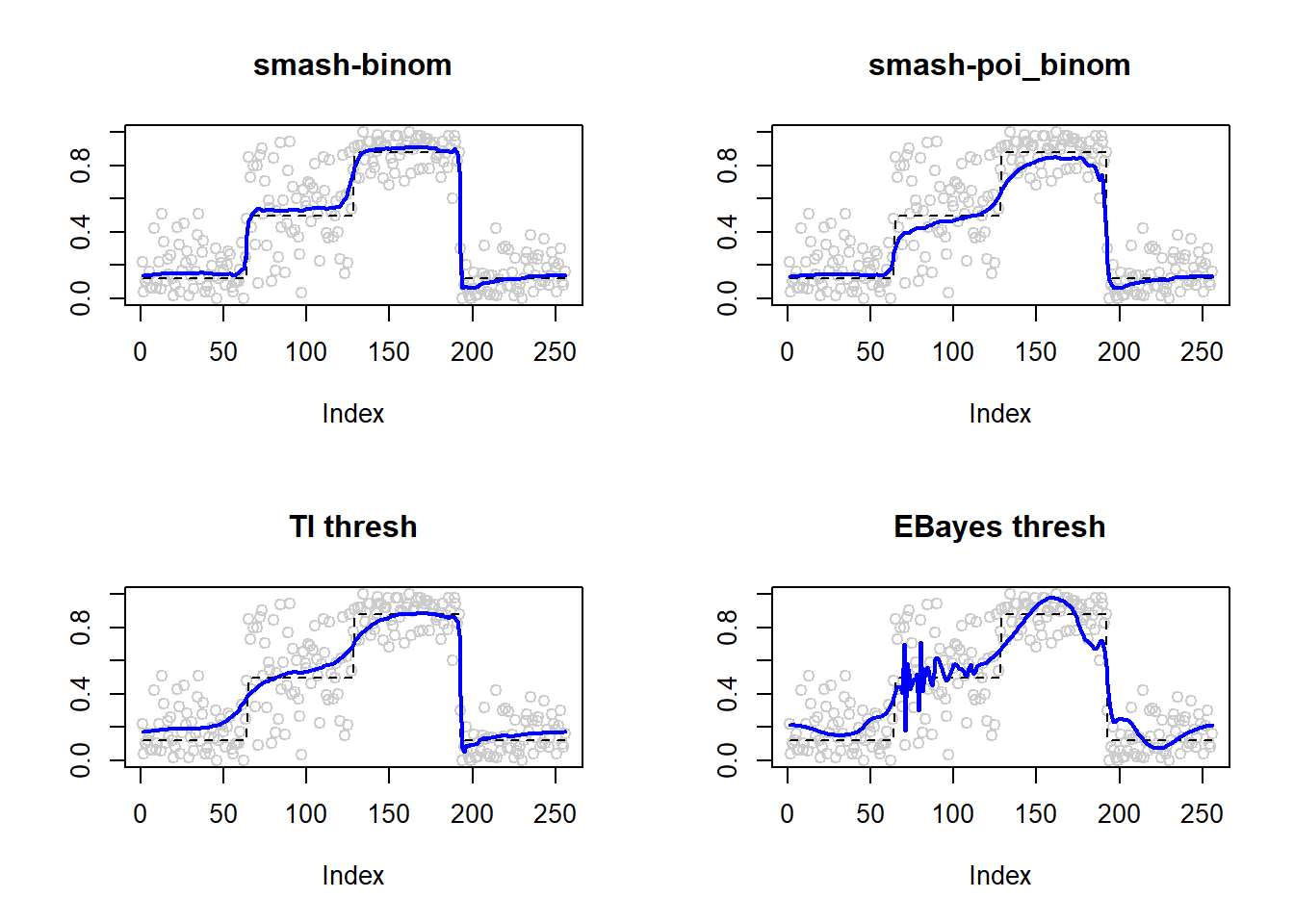

par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)

plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

Expand here to see past versions of unnamed-chunk-7-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

Bumps

Small \(n\)

m=seq(0,1,length.out = 256)
h = c(4, 5, 3, 4, 5, 4.2, 2.1, 4.3, 3.1, 5.1, 4.2)
w = c(0.005, 0.005, 0.006, 0.01, 0.01, 0.03, 0.01, 0.01, 0.005,0.008,0.005)
t=c(.1,.13,.15,.23,.25,.4,.44,.65,.76,.78,.81)
f = c()
for(i in 1:length(m)){
  f[i]=sum(h*(1+((m[i]-t)/w)^4)^(-1))
}
p=f-3

set.seed(111)
ntri=rpois(256,5)+1
result=simu_study(p,ntri=ntri)

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

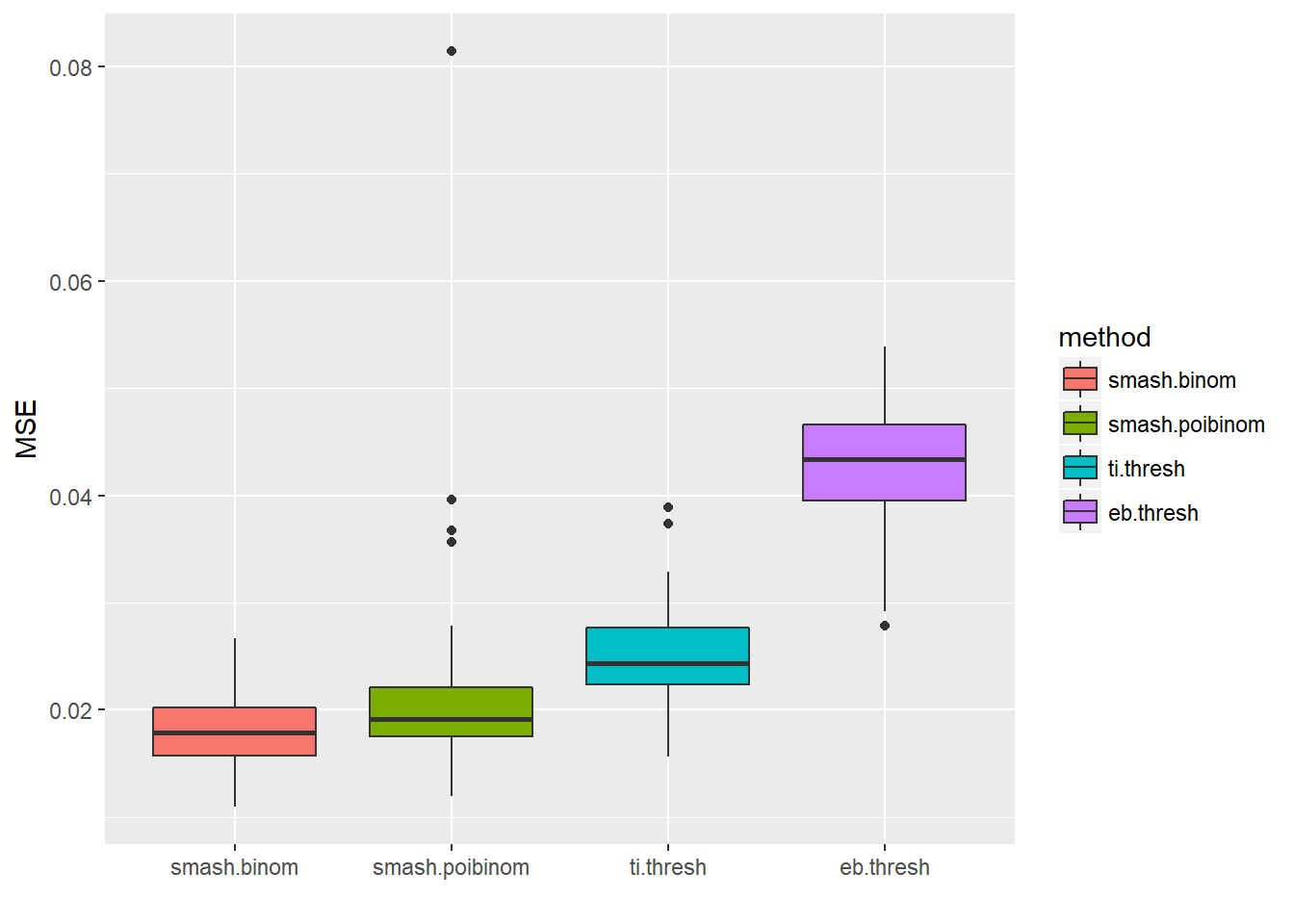

Expand here to see past versions of unnamed-chunk-8-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
    0.01793979     0.02080153     0.02484011     0.04274885
par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)

plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

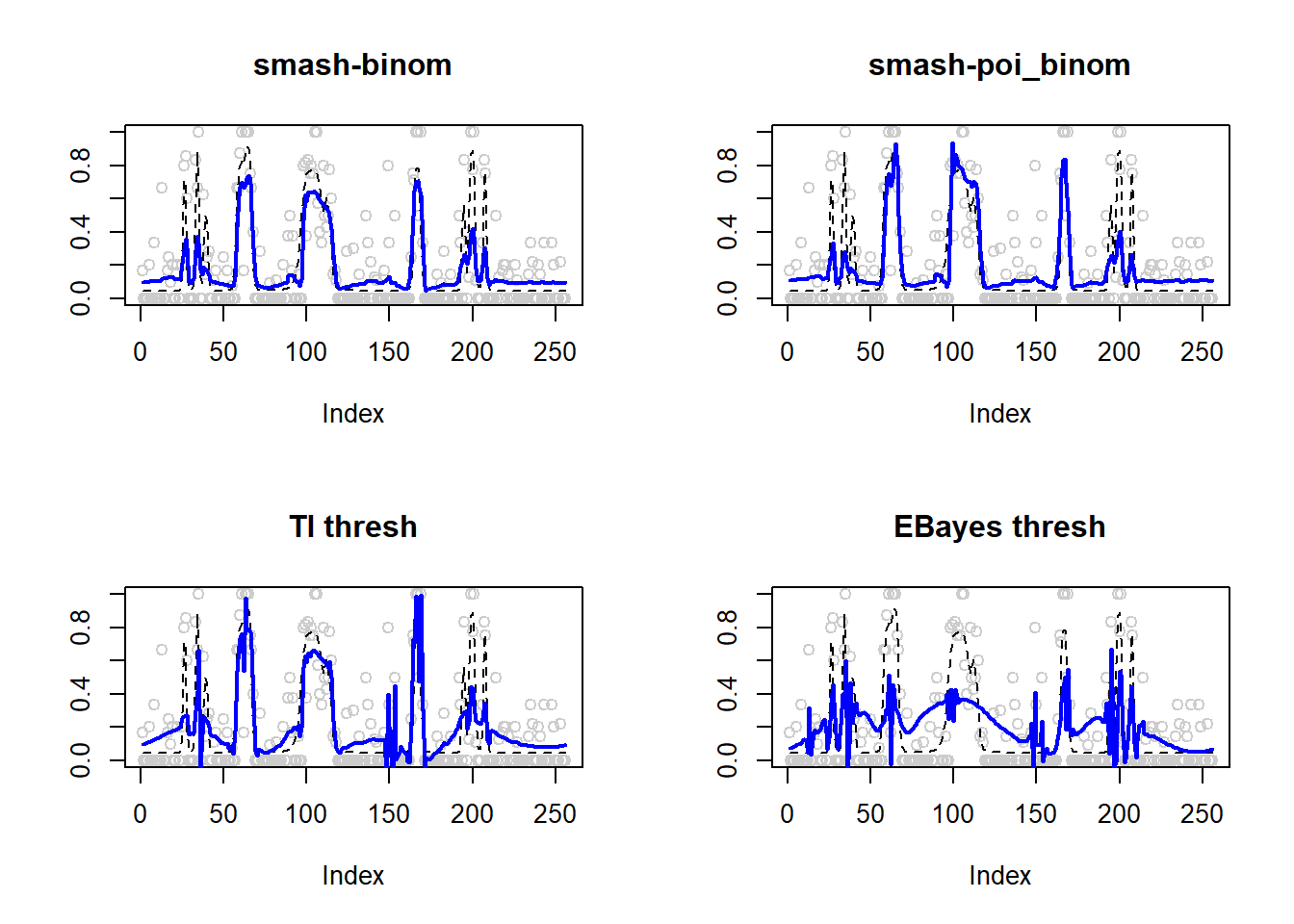

Expand here to see past versions of unnamed-chunk-8-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

Large \(n\).

m=seq(0,1,length.out = 256)
h = c(4, 5, 3, 4, 5, 4.2, 2.1, 4.3, 3.1, 5.1, 4.2)
w = c(0.005, 0.005, 0.006, 0.01, 0.01, 0.03, 0.01, 0.01, 0.005,0.008,0.005)
t=c(.1,.13,.15,.23,.25,.4,.44,.65,.76,.78,.81)
f = c()
for(i in 1:length(m)){
  f[i]=sum(h*(1+((m[i]-t)/w)^4)^(-1))
}
p=f-3

set.seed(111)
ntri=ntri+44
result=simu_study(p,ntri=ntri)

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

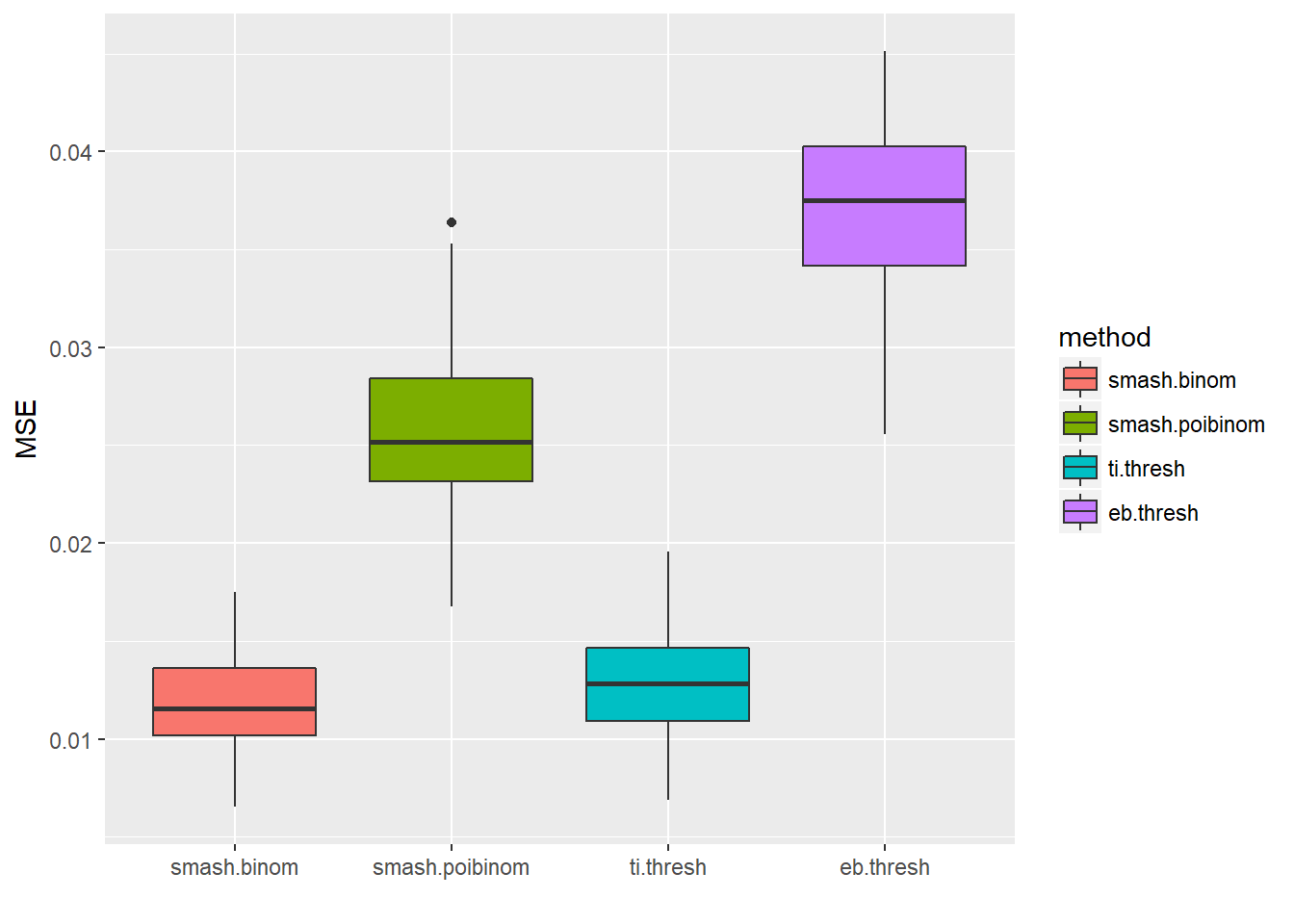

Expand here to see past versions of unnamed-chunk-9-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
    0.01186805     0.02590525     0.01273087     0.03682167
par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)

plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

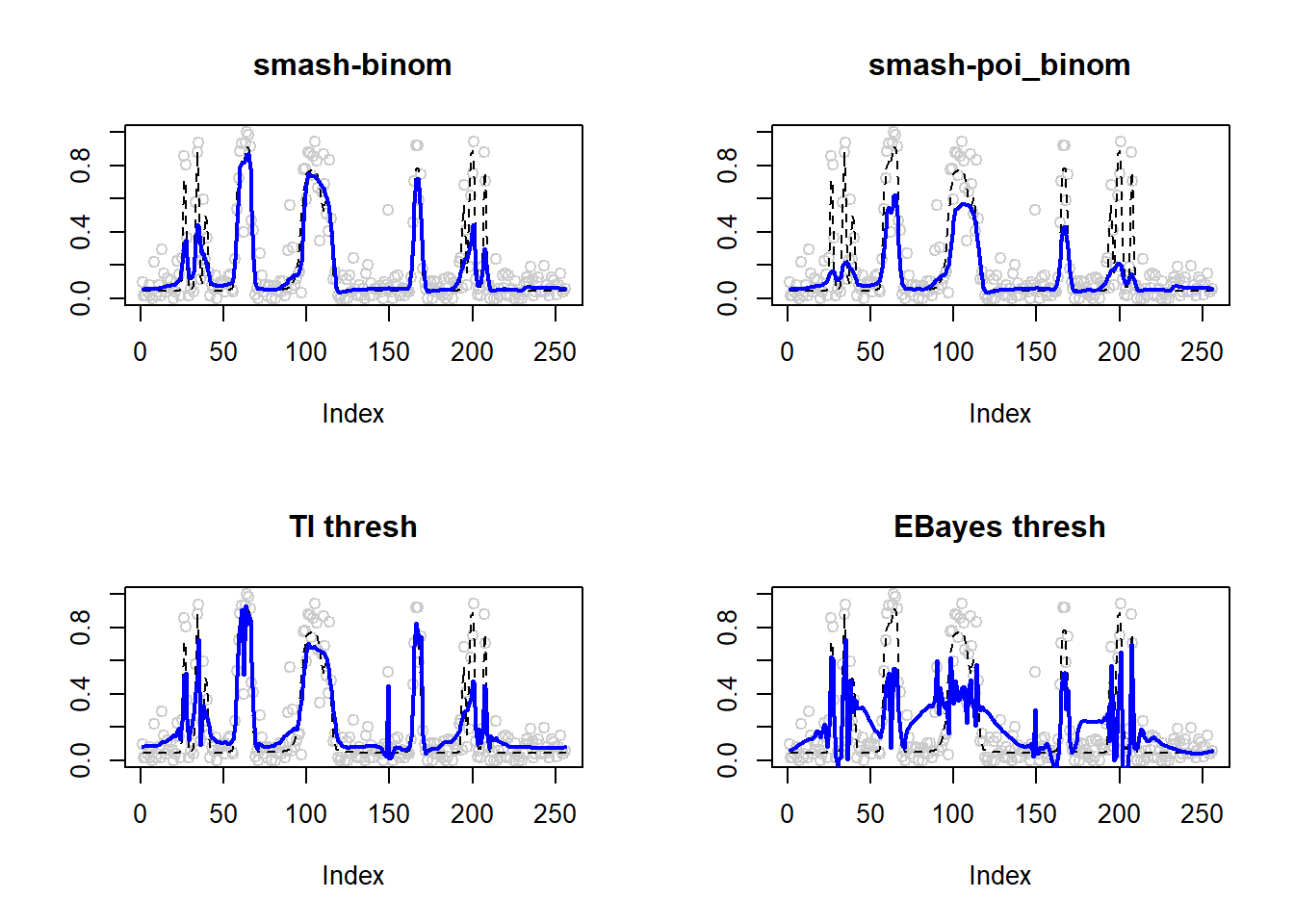

Expand here to see past versions of unnamed-chunk-9-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

Spike mean

Small \(n\)

spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) + 1.5 * exp(-2000 * (x - 0.33)^2) + 3 * exp(-8000 * (x - 0.47)^2) + 2.25 * exp(-16000 *
    (x - 0.69)^2) + 0.5 * exp(-32000 * (x - 0.83)^2))
n = 256
t = 1:n/n
p = spike.f(t)*2-2

set.seed(111)
ntri=rpois(256,5)+1
result=simu_study(p,ntri=ntri)

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

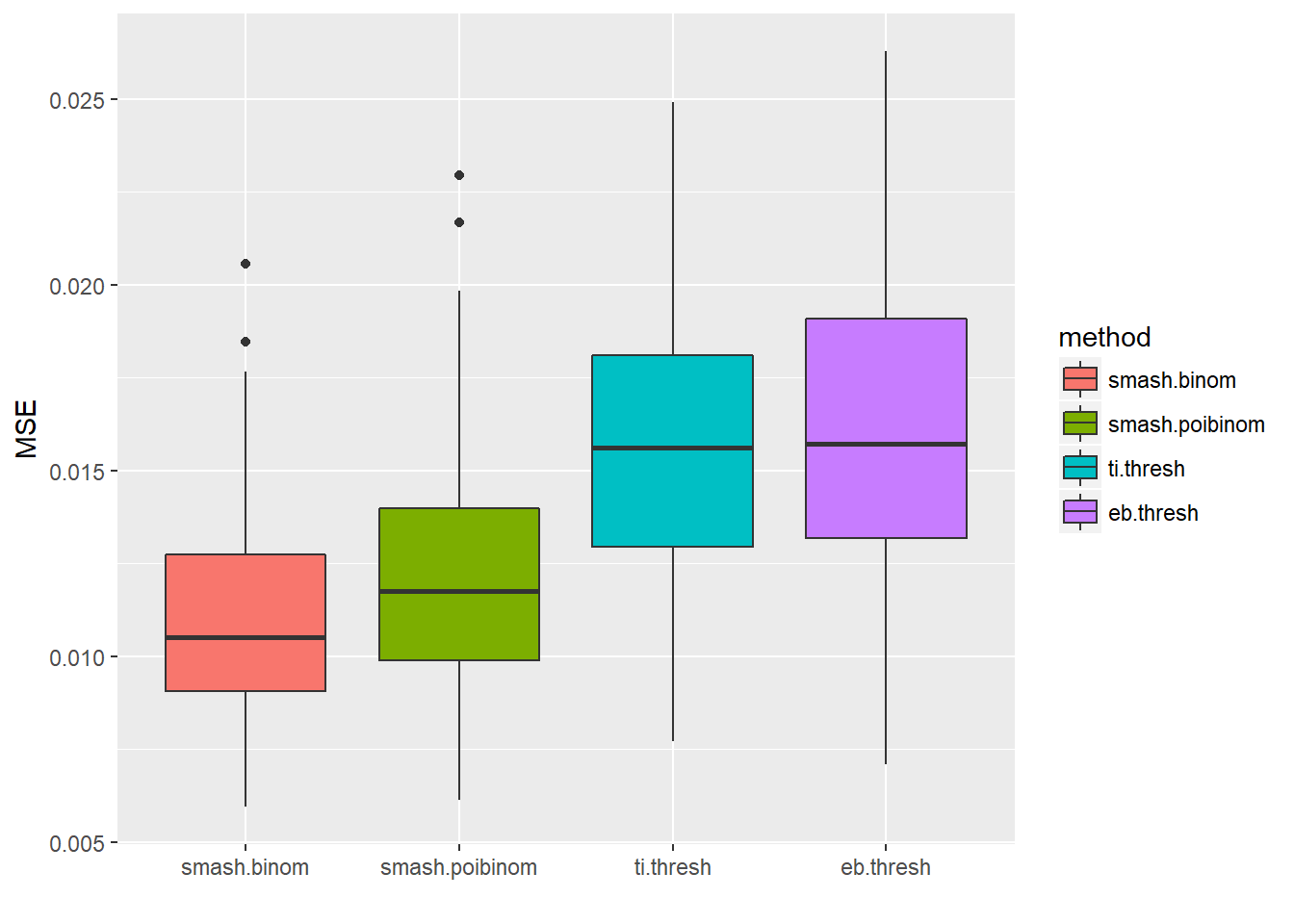

Expand here to see past versions of unnamed-chunk-10-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
    0.01101079     0.01225880     0.01576213     0.01627236
par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)

plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

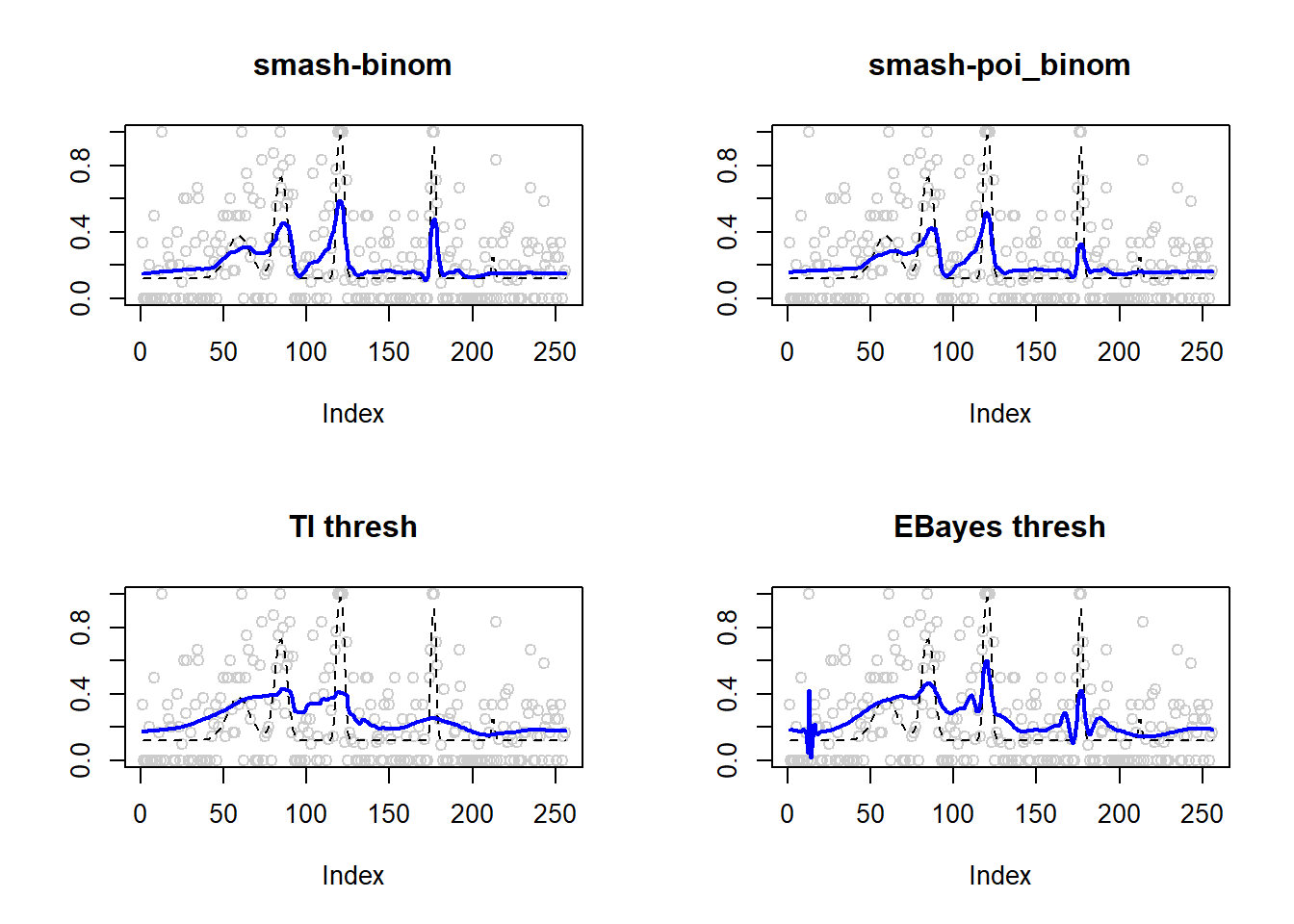

Expand here to see past versions of unnamed-chunk-10-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

Large \(n\)

spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) + 1.5 * exp(-2000 * (x - 0.33)^2) + 3 * exp(-8000 * (x - 0.47)^2) + 2.25 * exp(-16000 *
    (x - 0.69)^2) + 0.5 * exp(-32000 * (x - 0.83)^2))
n = 256
t = 1:n/n
p = spike.f(t)*2-2

set.seed(111)
ntri=ntri+44
result=simu_study(p,ntri=ntri)

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

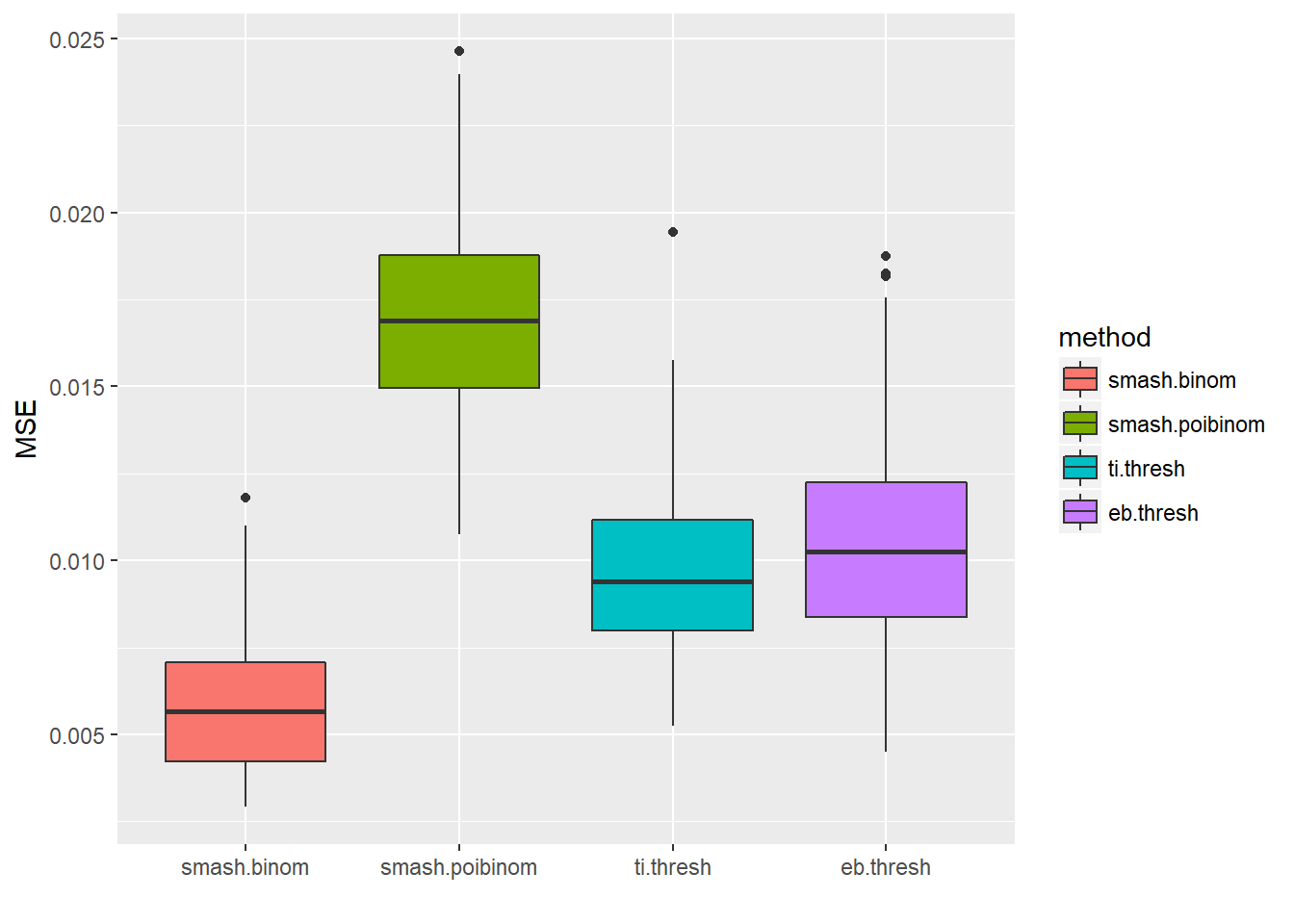

Expand here to see past versions of unnamed-chunk-11-1.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

apply(result$err,2,mean)
   smash.binom smash.poibinom      ti.thresh      eb.thresh
   0.005917600    0.017084435    0.009726599    0.010659236
par(mfrow=c(2,2))
plot(result$est$x/ntri,col='gray80',ylab='',main='smash-binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.binom.out,col=4,lwd=2)

plot(result$est$x/ntri,col='gray80',ylab='',main='smash-poi_binom')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$smash.poibinom.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='TI thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$ti.thresh.out,col=4,lwd=2)
plot(result$est$x/ntri,col='gray80',ylab='',main='EBayes thresh')
lines(exp(p)/(1+exp(p)),lty=2)
lines(result$est$eb.thresh.out,col=4,lwd=2)

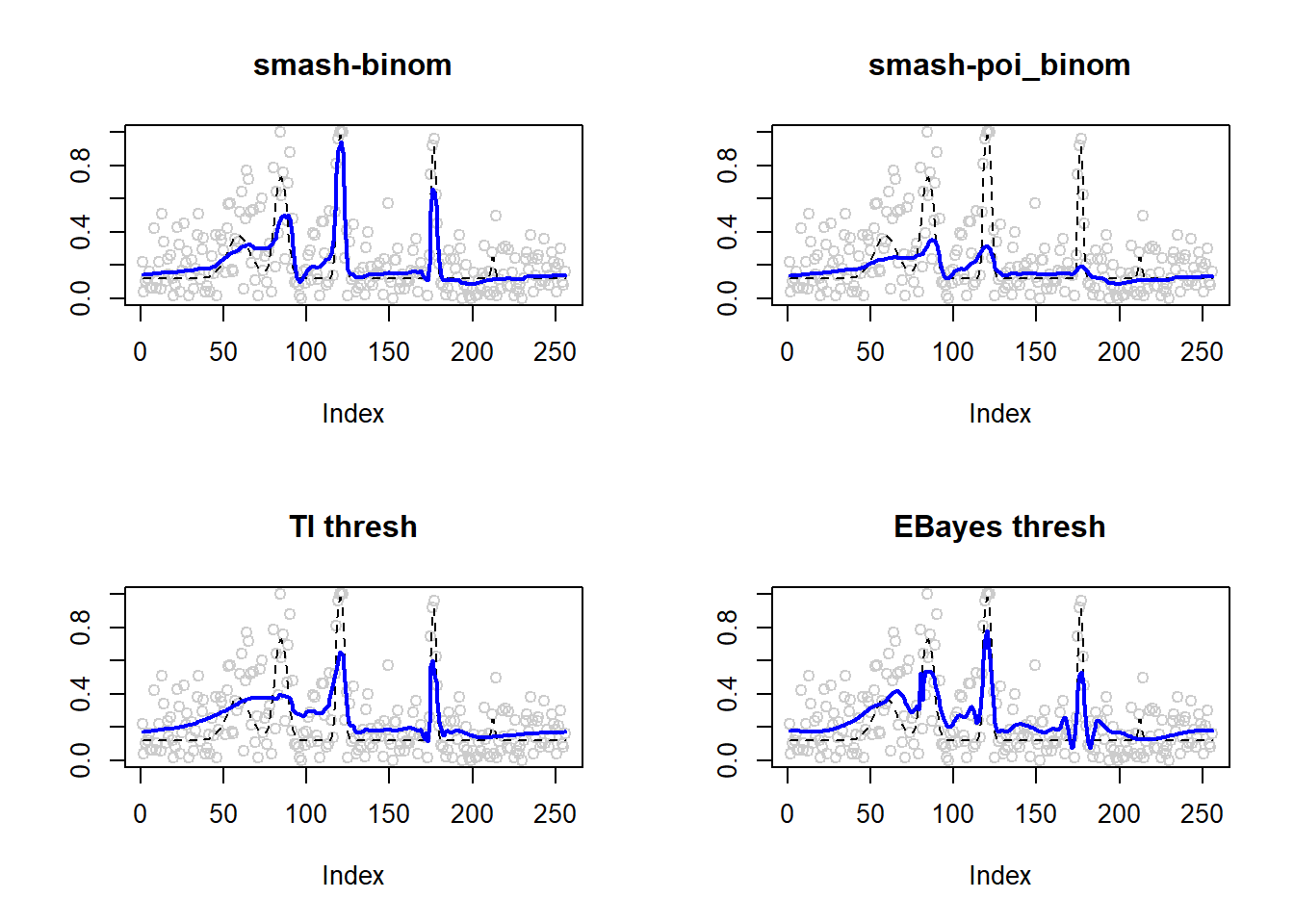

Expand here to see past versions of unnamed-chunk-11-2.png:
Version Author Date
affe104 Dongyue 2018-05-19
9d6ca07 Dongyue 2018-05-18

Summary

When \(p\) is unchanged, smaller number of trials lead to larger MSE for smashgen-binom, TI thresh and EB thresh, while this is not the case for smash-poi_binom. This seems strange. I think the reason is that with the increase of \(ntri\), the variance also increases. Hence, when we treat the data as poisson and try to use ash ‘estimating’ the \(\lambda_i\)(or \(n_ip_i\)), the estimates are not as good as the smaller variance cases.

Session information

sessionInfo()
R version 3.4.0 (2017-04-21)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 16299)

Matrix products: default

locale:
[1] LC_COLLATE=English_United States.1252
[2] LC_CTYPE=English_United States.1252
[3] LC_MONETARY=English_United States.1252
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.1252

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] EbayesThresh_1.4-12 ggplot2_2.2.1       smashrgen_0.1.0
[4] wavethresh_4.6.8    MASS_7.3-47         caTools_1.17.1
[7] ashr_2.2-7          smashr_1.1-5

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.16        plyr_1.8.4          compiler_3.4.0
 [4] git2r_0.21.0        workflowr_1.0.1     R.methodsS3_1.7.1
 [7] R.utils_2.6.0       bitops_1.0-6        iterators_1.0.8
[10] tools_3.4.0         digest_0.6.13       tibble_1.3.3
[13] evaluate_0.10       gtable_0.2.0        lattice_0.20-35
[16] rlang_0.1.2         Matrix_1.2-9        foreach_1.4.3
[19] yaml_2.1.19         parallel_3.4.0      stringr_1.3.0
[22] knitr_1.20          REBayes_1.3         rprojroot_1.3-2
[25] grid_3.4.0          data.table_1.10.4-3 rmarkdown_1.8
[28] magrittr_1.5        whisker_0.3-2       backports_1.0.5
[31] scales_0.4.1        codetools_0.2-15    htmltools_0.3.5
[34] assertthat_0.2.0    colorspace_1.3-2    labeling_0.3
[37] stringi_1.1.6       Rmosek_8.0.69       lazyeval_0.2.1
[40] munsell_0.4.3       doParallel_1.0.11   pscl_1.4.9
[43] truncnorm_1.0-7     SQUAREM_2017.10-1   R.oo_1.21.0

This reproducible R Markdown analysis was created with workflowr 1.0.1
