simu_study_basis=function(mu,nsimu=100,seed=1234,niter=1,robust=F){
  n=length(mu)
  set.seed(seed)
  smash.err=c()
  gen.haar.err=c()
  gen.sym.err=c()
  for(iter in 1:nsimu){
    y=rpois(n,mu)
    smash.out=smash.poiss(y)
    gen.haar.out=smash_gen(y,niter = niter,robust=robust)
    gen.sym.out=smash_gen(y,wave_family = 'DaubLeAsymm',filter.number = 8,niter=niter,robust=robust)
    smash.err[iter]=mse(smash.out,mu)
    gen.haar.err[iter]=mse(gen.haar.out,mu)
    gen.sym.err[iter]=mse(gen.sym.out,mu)
  }
  return(list(est=data.frame(smash=smash.out,smashgen.haar=gen.haar.out,smashgen.sym=gen.sym.out,y=y),err=data.frame(smash=smash.err,smashgen.haar=gen.haar.err,smashgen.sym=gen.sym.err)))
}

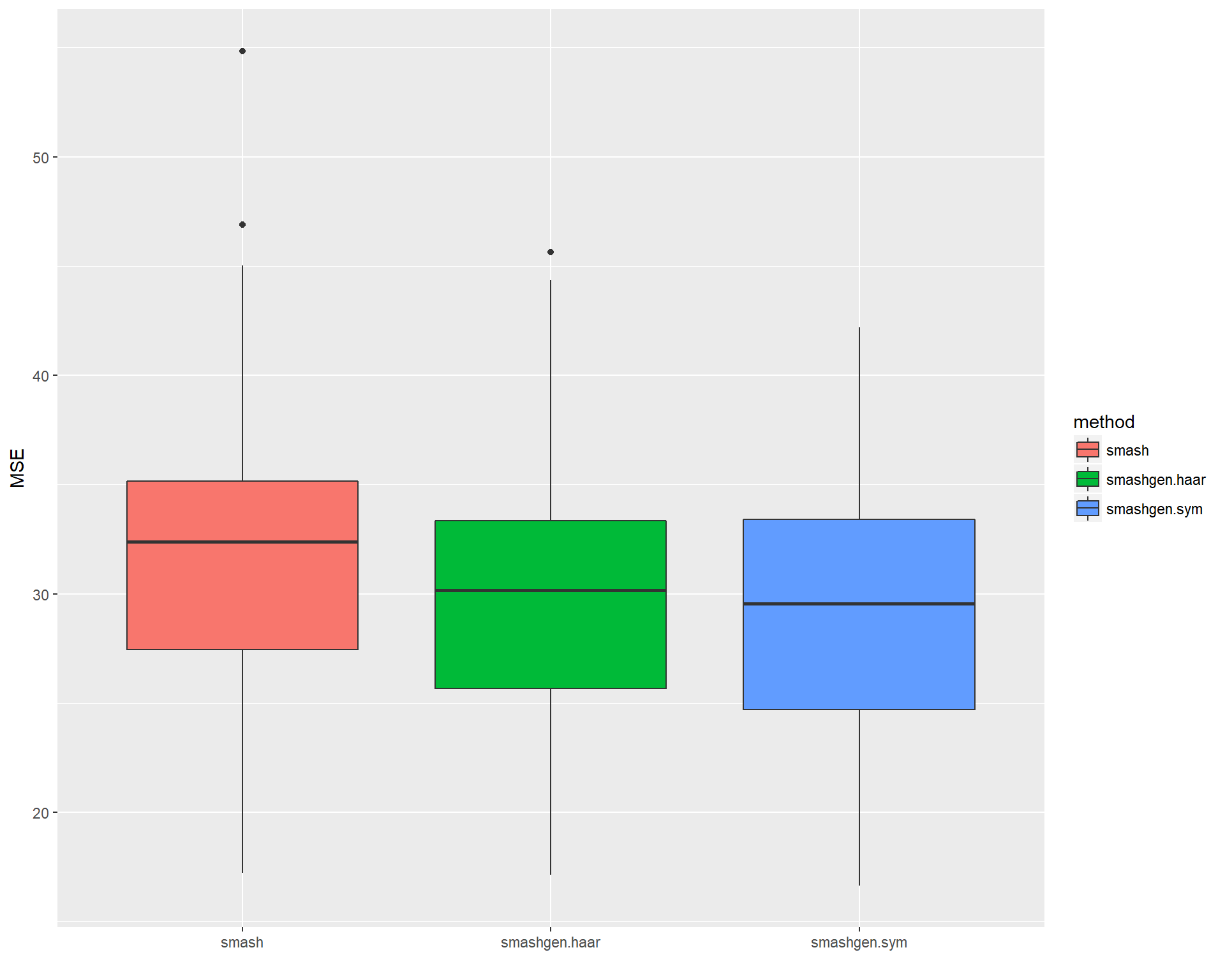

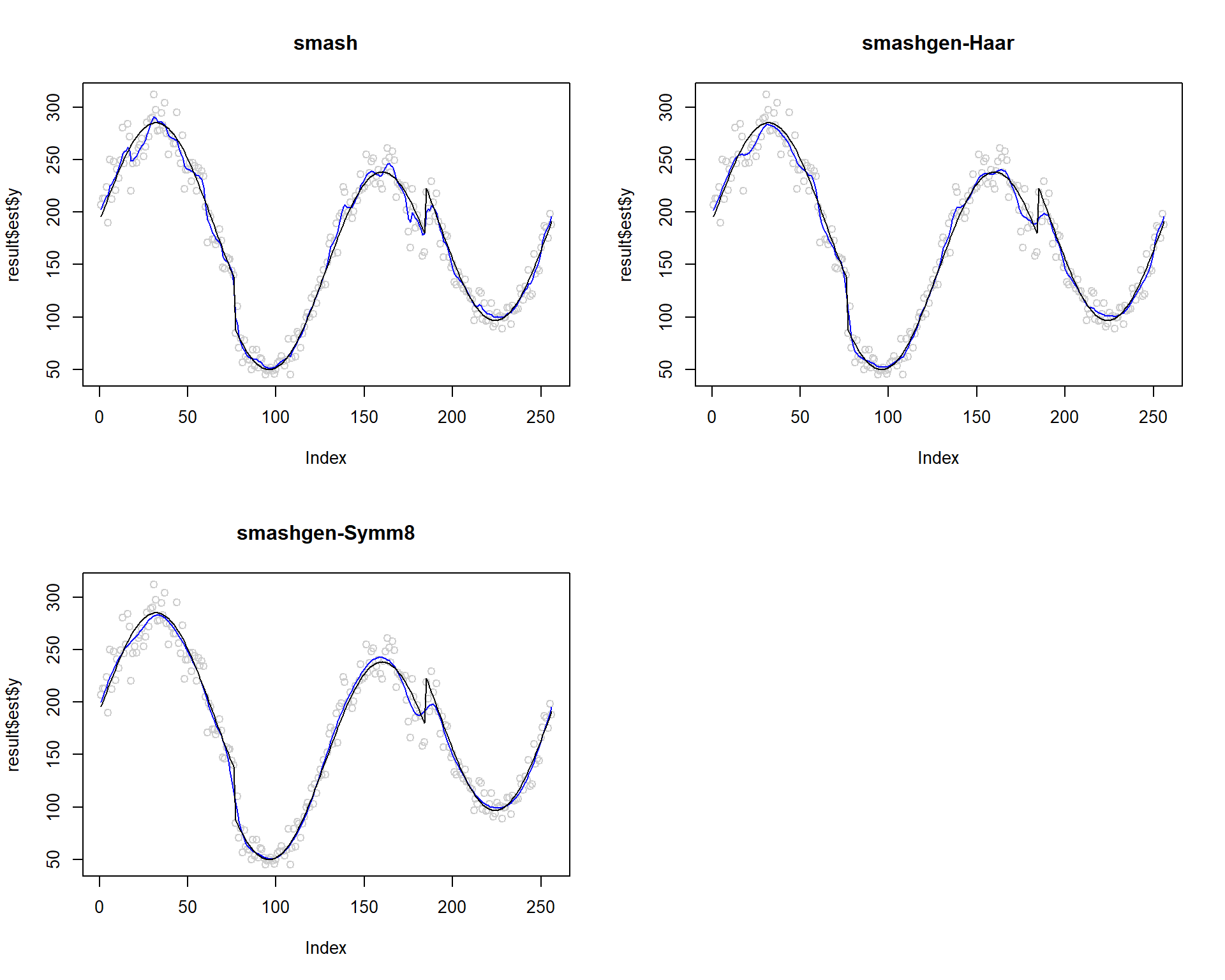

HeaviSine

library(smashrgen)
library(ggplot2)
mu=DJ.EX(256,signal = 7)$heavi
mu=(mu-min(mu)+5)*10
range(mu)

[1]  50.0000 285.1265

result=simu_study_basis(mu)
ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

par(mfrow=c(2,2))
plot(result$est$y,col='gray80',main='smash')
lines(result$est$smash,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Haar')
lines(result$est$smashgen.haar,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Symm8')
lines(result$est$smashgen.sym,col=4)
lines(mu)

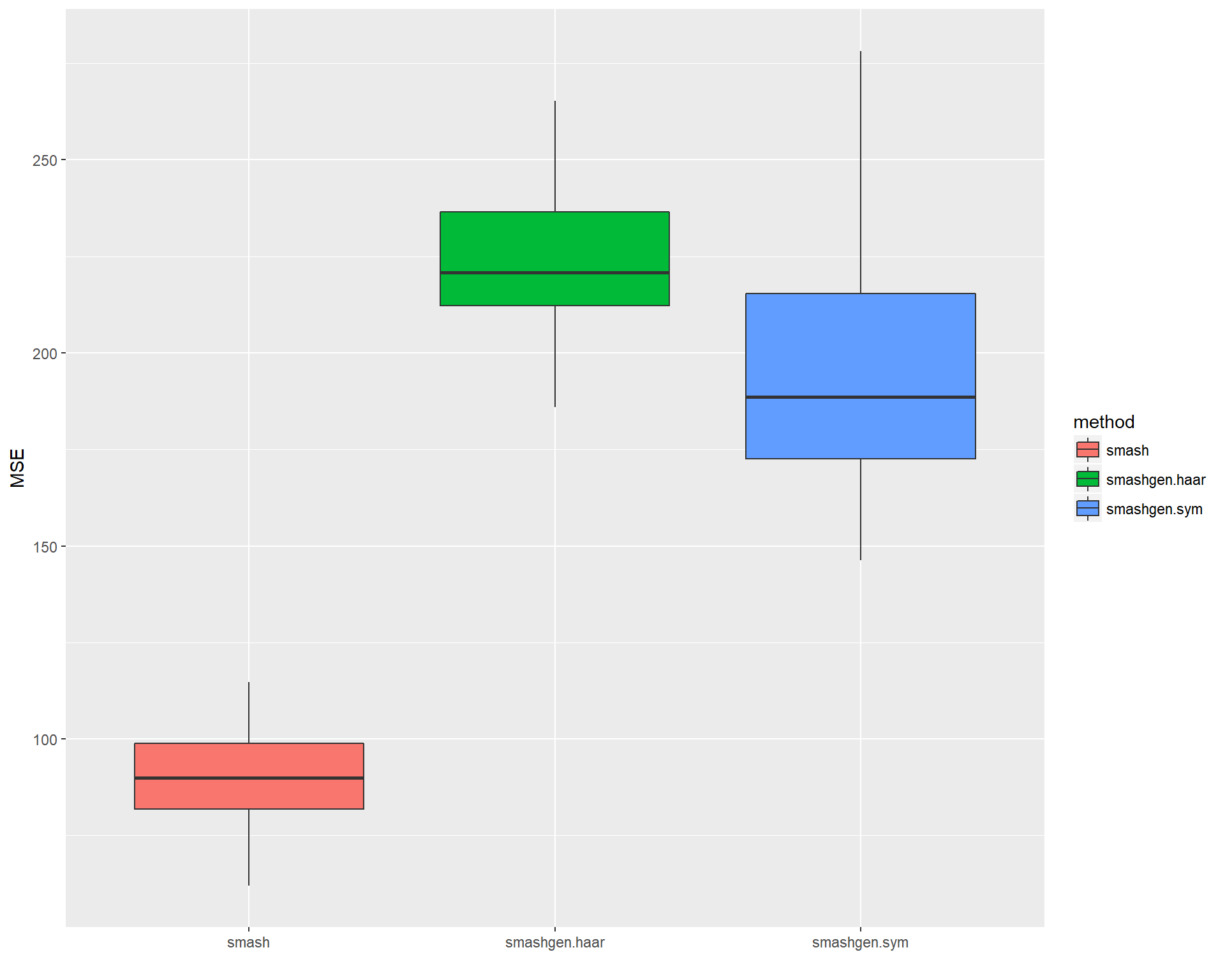

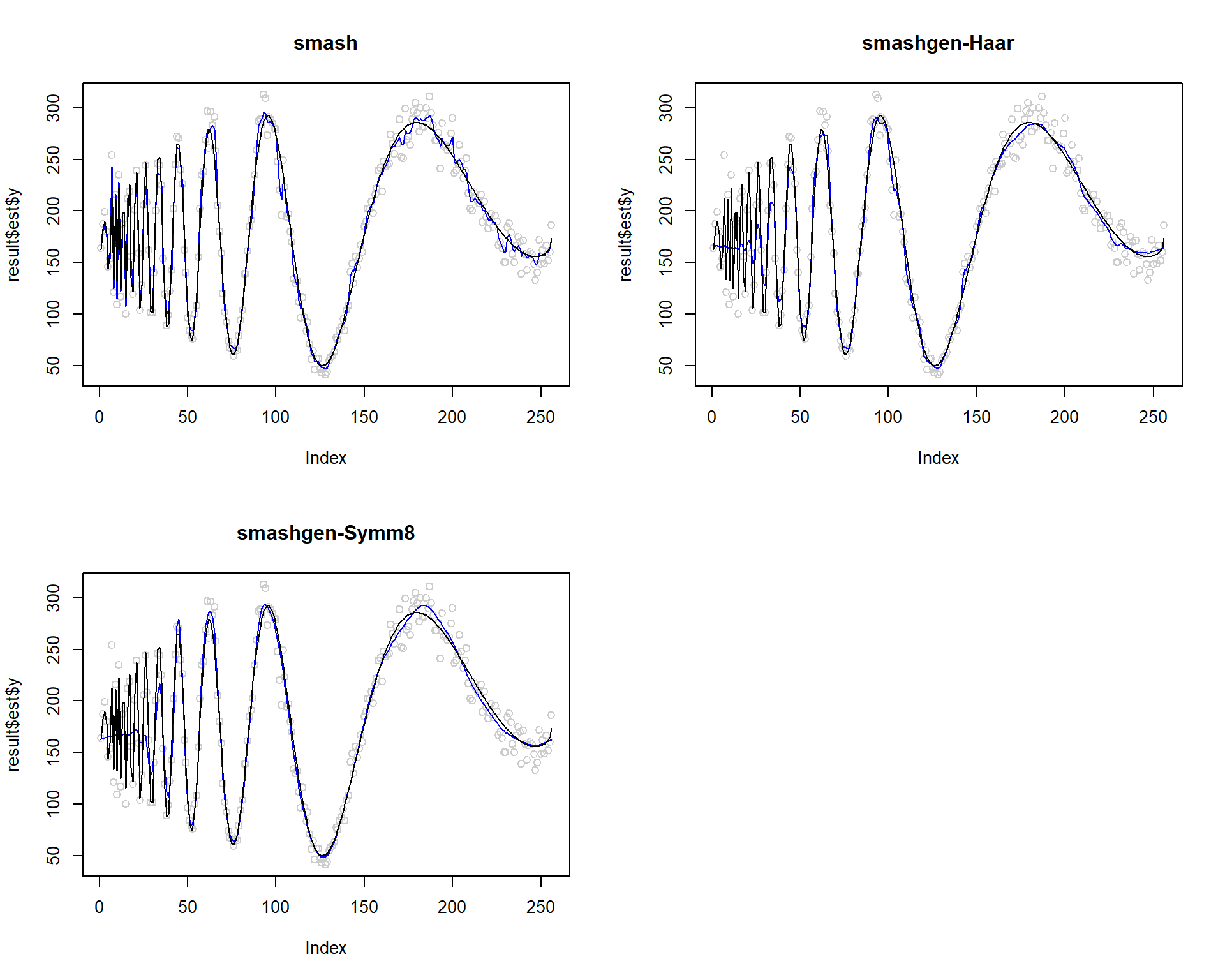

Doppler

mu=DJ.EX(256,signal = 7)$doppler
mu=(mu-min(mu)+5)*10
range(mu)

[1]  50.0000 292.5644

#plot(mu,type='l')
result=simu_study_basis(mu)
ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

par(mfrow=c(2,2))
plot(result$est$y,col='gray80',main='smash')
lines(result$est$smash,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Haar')
lines(result$est$smashgen.haar,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Symm8')
lines(result$est$smashgen.sym,col=4)
lines(mu)

Parabola

r=function(x,c){return((x-c)^2*(x>c)*(x<=1))}
f=function(x){return(0.8 − 30*r(x,0.1) + 60*r(x, 0.2) − 30*r(x, 0.3) +
500*r(x, 0.35) − 1000*r(x, 0.37) + 1000*r(x, 0.41) − 500*r(x, 0.43) +
7.5*r(x, 0.5) − 15*r(x, 0.7) + 7.5*r(x, 0.9))}
mu=f(1:256/256)
mu=mu*250
range(mu)

[1]  50 200

result=simu_study_basis(mu)

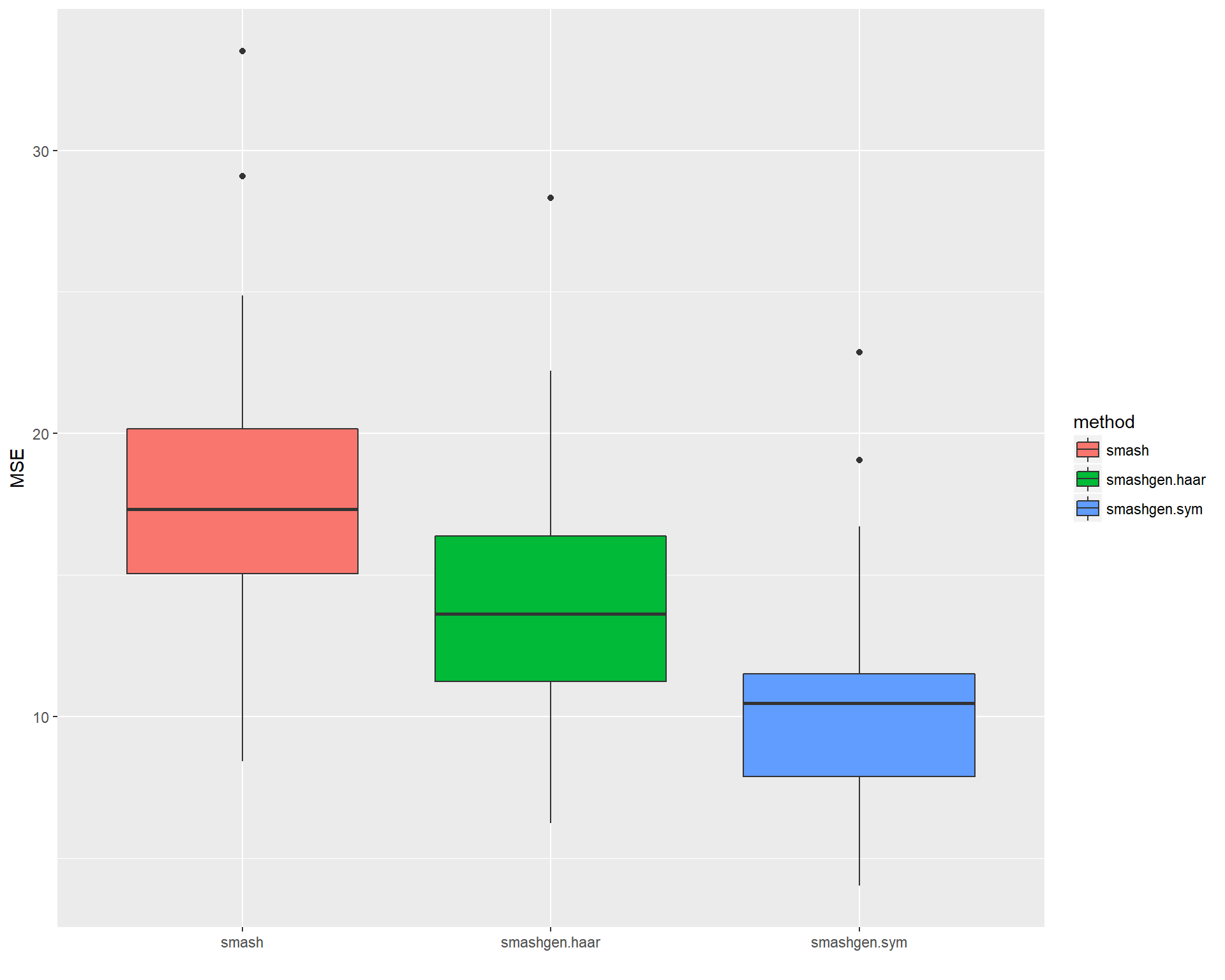

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

par(mfrow=c(2,2))
plot(result$est$y,col='gray80',main='smash')
lines(result$est$smash,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Haar')
lines(result$est$smashgen.haar,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Symm8')
lines(result$est$smashgen.sym,col=4)
lines(mu)

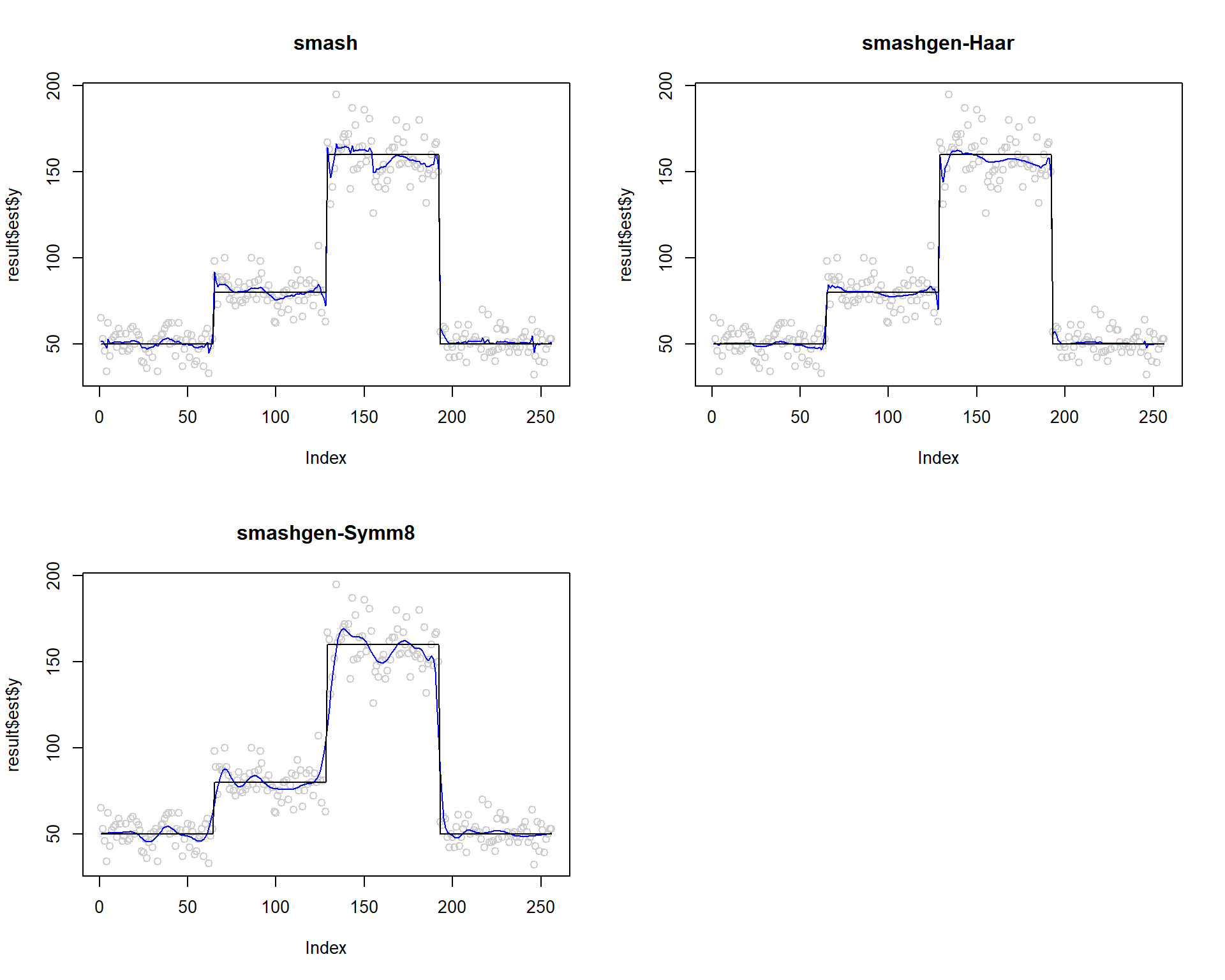

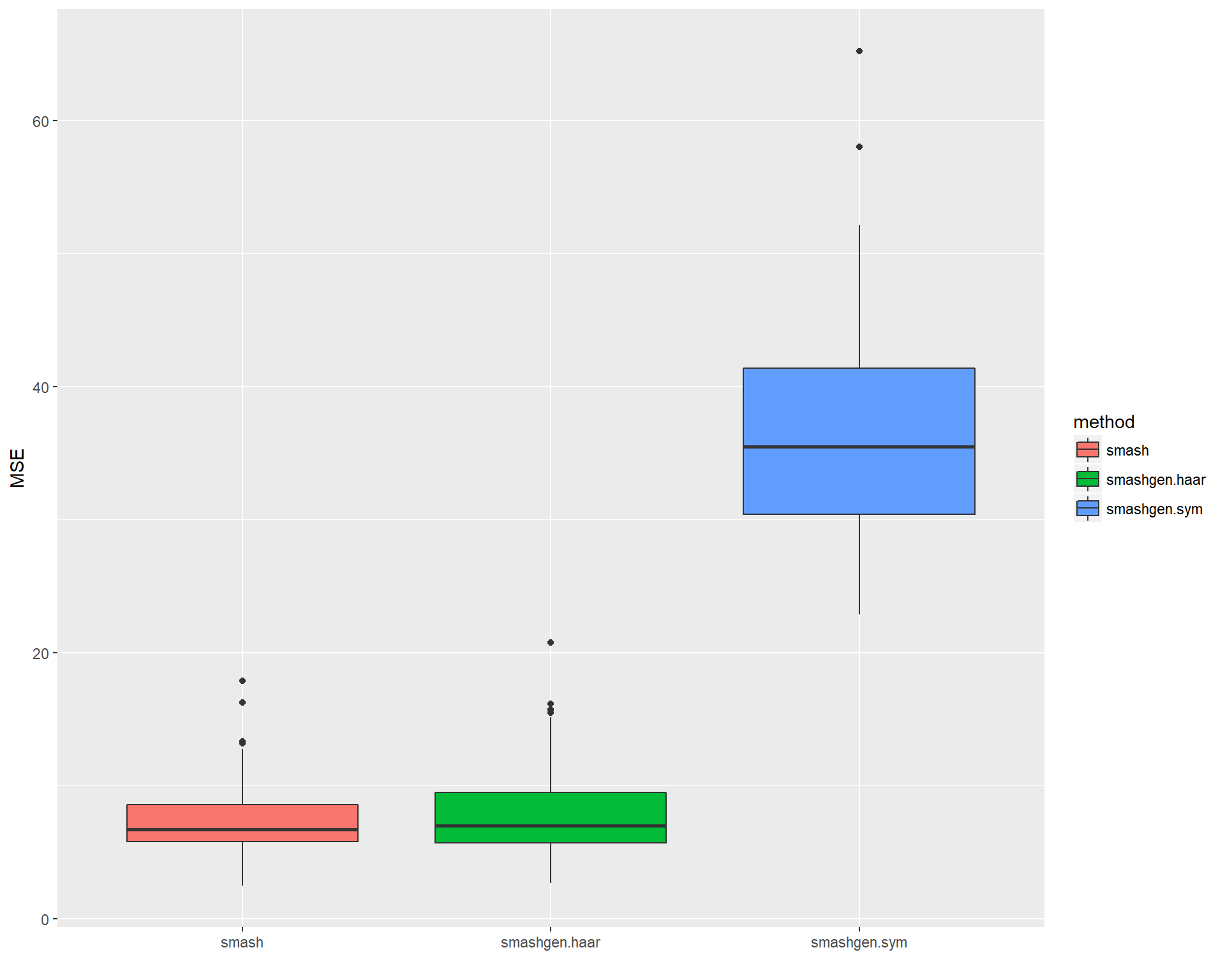

Step

range of \(\mu\) roughly \((1,6)\).

mu=c(rep(50,64), rep(80, 64), rep(160, 64), rep(50, 64))
result=simu_study_basis(mu)
ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

par(mfrow=c(2,2))
plot(result$est$y,col='gray80',main='smash')
lines(result$est$smash,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Haar')
lines(result$est$smashgen.haar,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Symm8')
lines(result$est$smashgen.sym,col=4)
lines(mu)

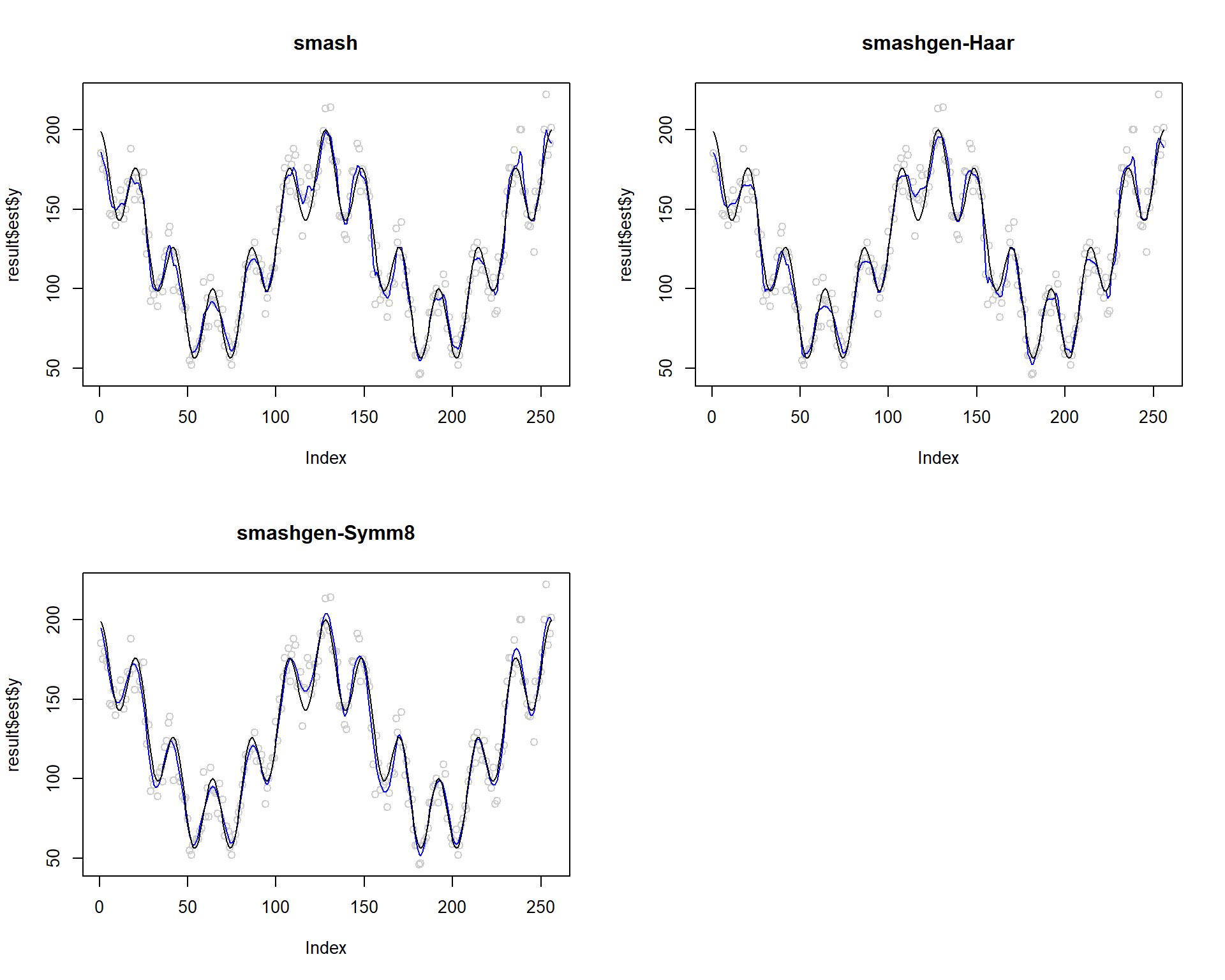

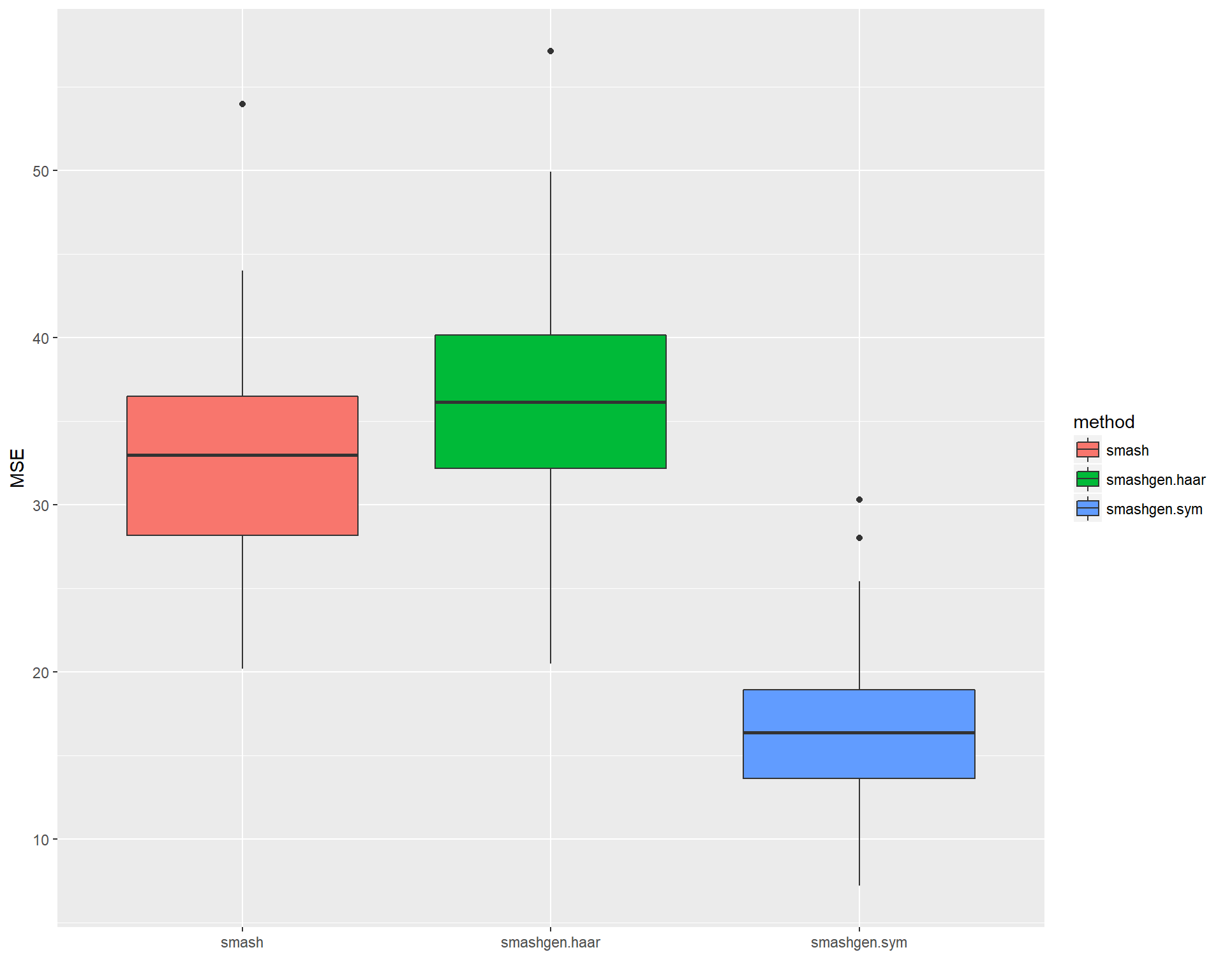

Wave

f=function(x){return(0.5 + 0.2*cos(4*pi*x) + 0.1*cos(24*pi*x))}
mu=f(1:256/256)
mu=mu*250
range(mu)

[1]  56.3843 200.0000

result=simu_study_basis(mu)

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

par(mfrow=c(2,2))
plot(result$est$y,col='gray80',main='smash')
lines(result$est$smash,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Haar')
lines(result$est$smashgen.haar,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Symm8')
lines(result$est$smashgen.sym,col=4)
lines(mu)

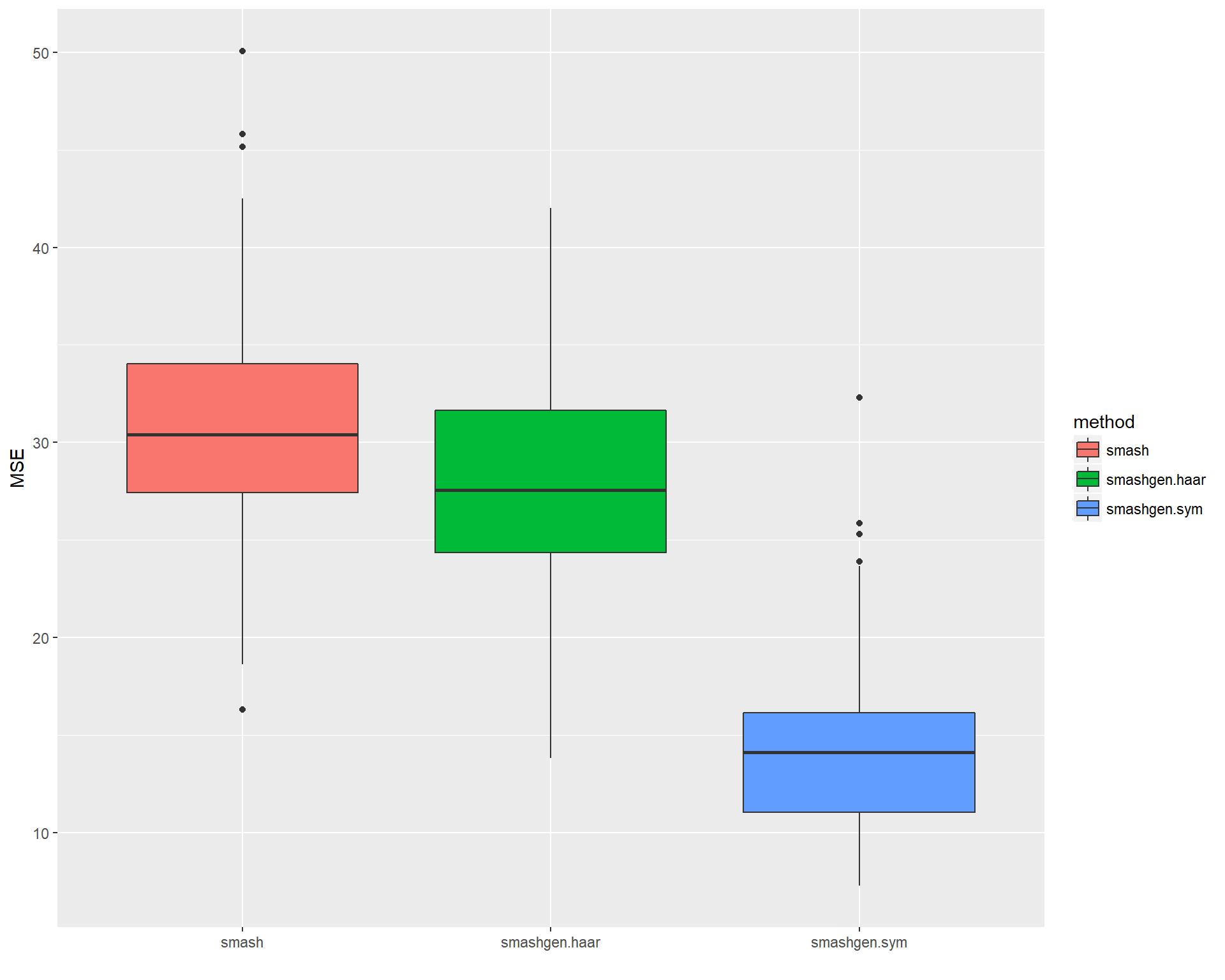

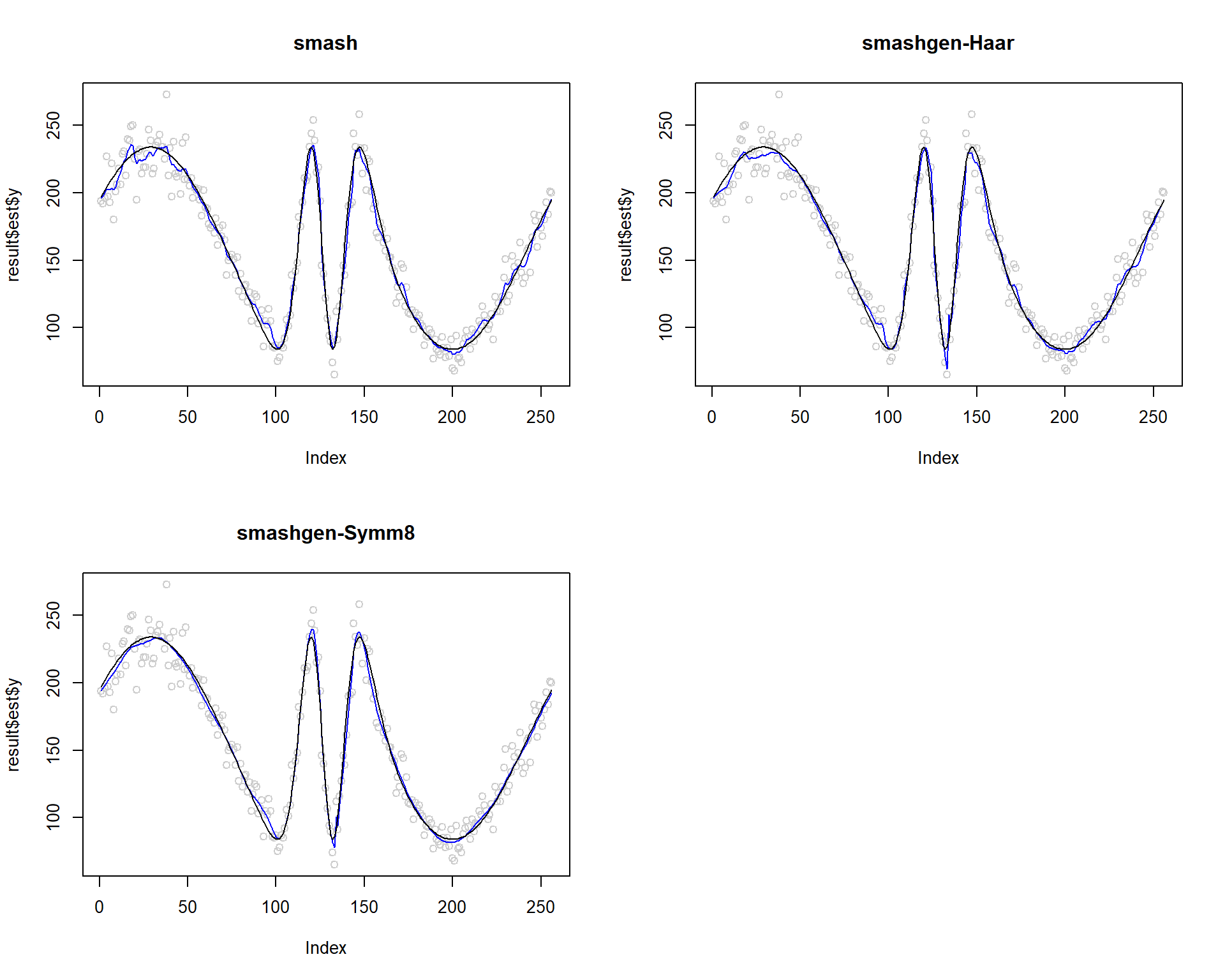

Time shifted sine

g=function(x){return((1 − cos(pi*x))/2)}
f=function(x){return(0.3*sin(3*pi*(g(g(g(g(x)))) + x) + 0.5))}
mu=f(1:256/256)
mu=mu*250+159
range(mu)

[1]  84.00303 233.99963

result=simu_study_basis(mu)

ggplot(df2gg(result$err),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')

par(mfrow=c(2,2))
plot(result$est$y,col='gray80',main='smash')
lines(result$est$smash,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Haar')
lines(result$est$smashgen.haar,col=4)
lines(mu)

plot(result$est$y,col='gray80',main='smashgen-Symm8')
lines(result$est$smashgen.sym,col=4)
lines(mu)
