Introduction

Generalized additve model can be written as \(g(E(Y))=\beta_0+f_1(x_1)+f_2(x_2)+...+f_p(x_p)\), where \(f_i\) is smooth, either parametric, nonparametric or semi-parametric. The model is interpretable and flexible.

Let’s try GAM on smoothing poisson and binomial data.

Poisson

library(mgcv)
Loading required package: nlme
This is mgcv 1.8-24. For overview type 'help("mgcv-package")'.
set.seed(12345)
n=512
m=c(rep(3,128), rep(5, 128), rep(6, 128), rep(3, 128))
y=rpois(n,m)
x=1:n
gam.mod=gam(y~s(x,bs='cr'),family = poisson())

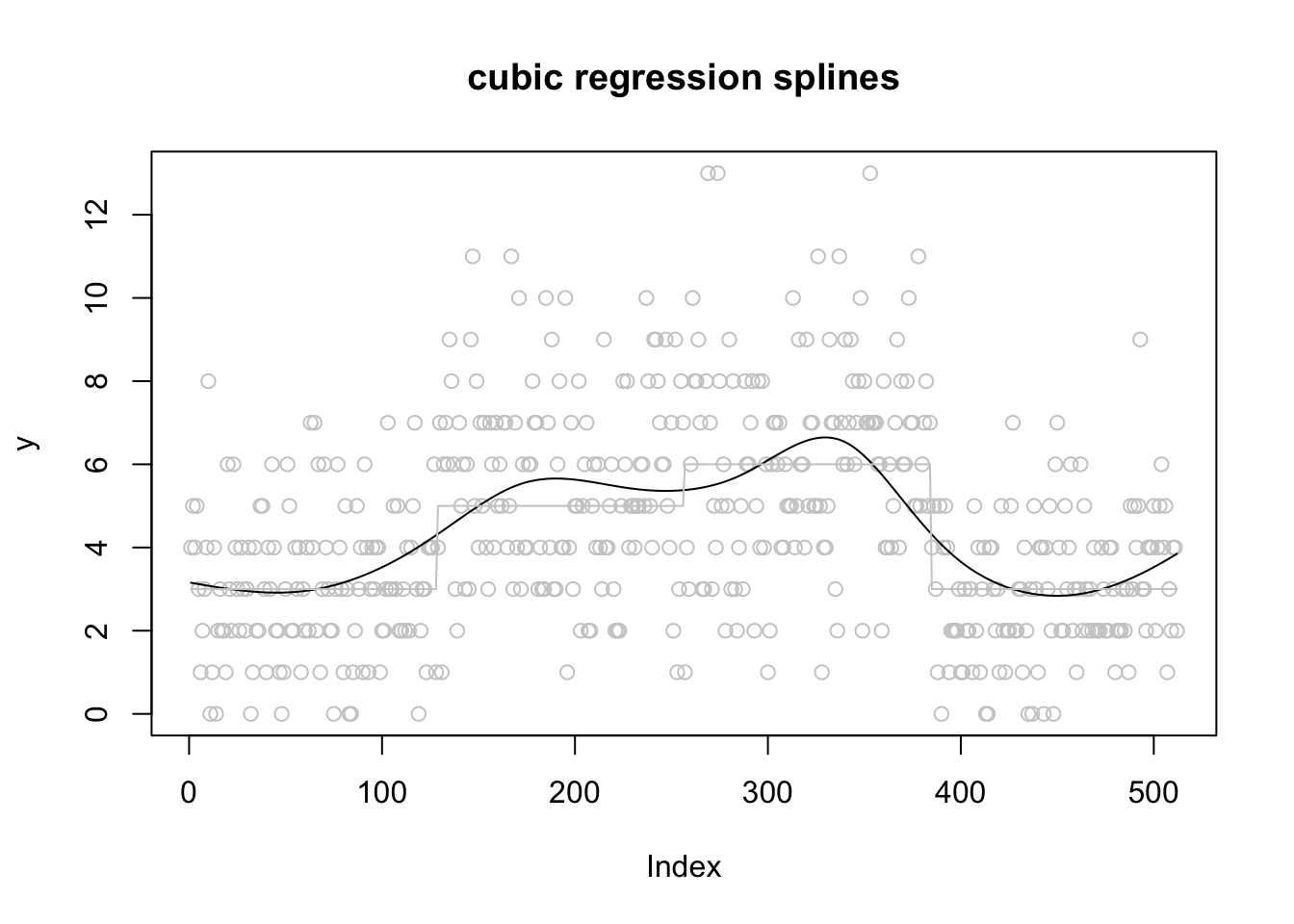

plot(y,col='grey80',main='cubic regression splines')
lines(gam.mod$fitted.values)
lines(m,col='grey80')

set.seed(12345)
n=512
spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) + 1.5 * exp(-2000 * (x - 0.33)^2) + 3 * exp(-8000 * (x - 0.47)^2) + 2.25 * exp(-16000 *
    (x - 0.69)^2) + 0.5 * exp(-32000 * (x - 0.83)^2))
t = 1:n/n
m = spike.f(t)
y=rpois(n,m)
x=t
gam.mod=gam(y~s(x,bs='cr'),family = poisson())

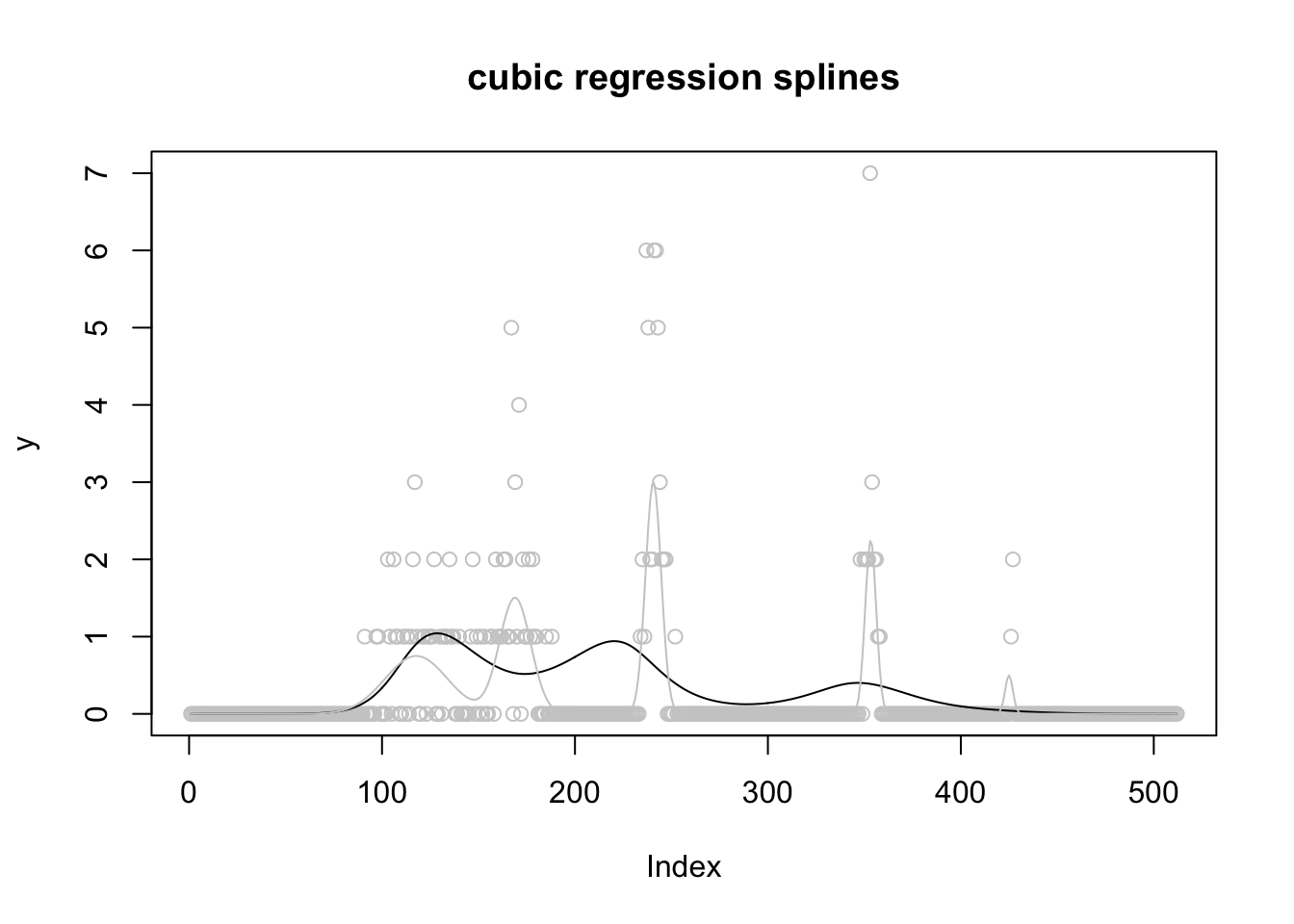

plot(y,col='grey80',main='cubic regression splines')
lines(gam.mod$fitted.values)
lines(m,col='grey80')

Binomial

set.seed(12345)
p=c(rep(-2,128), rep(0, 128), rep(2, 128), rep(-2, 128))
p=exp(p)/(1+exp(p))
ntri=rpois(n,30)
y=rbinom(n,ntri,p)
gam.mod=gam(y/ntri~s(x,bs='cr'),family = binomial())

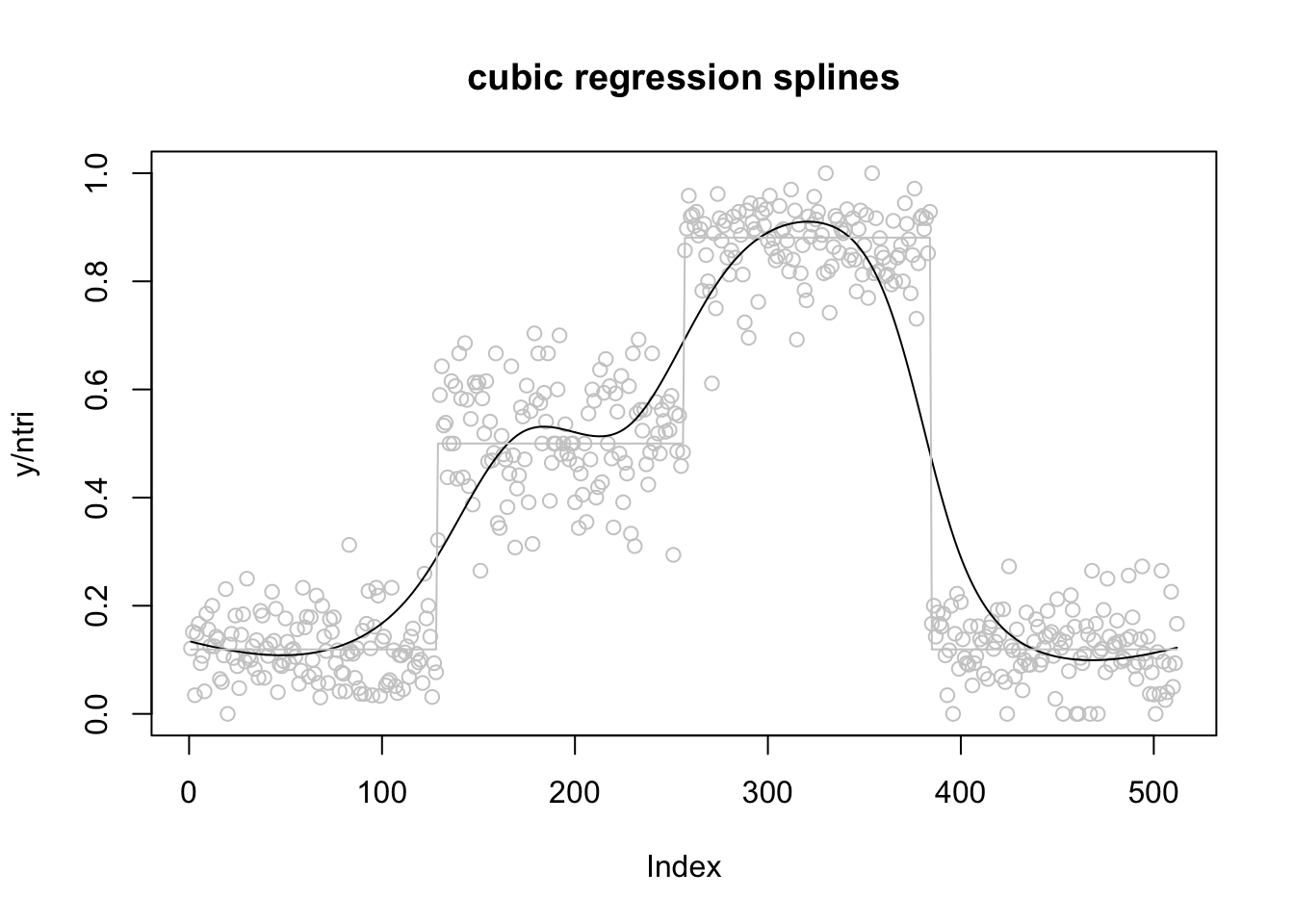

plot(y/ntri,col='grey80',main='cubic regression splines')
lines(gam.mod$fitted.values)
lines(p,col='grey80')
