To C or not to C, let Nim answer the question!

Table of content

  • Introduction
  • Looking for trouble
  • Getting out of trouble
  • Did I get out of trouble?
  • Hello, is it Nim you're looking for?

Me, myself and I


Bonta Sergiu Vlad

Email/contact: or just google my name

Web developer for about 3 years(it's less then 3 but not by much)

Me knows mostly Python and Javascript

“Do I really look like a guy with a plan? You know what I am? I'm a dog chasing cars. I wouldn't know what to do with one if I caught it! You know, I just… do things.”

― The Joker - Heath Ledger

Buyers beware

  • I am you're average Joe programmer. No fancy big corporation, no big project, not much experience.
  • Every benchmark out there lies, this included.
  • I am very biased towards Nim.

“Madness, as you know, is a lot like gravity, all it takes is a little push” - The Joker

Looking for trouble

"Every Fairy Tale Needs A Good Old Fashioned Villain"

  • cpu intensive
  • relative easy to explain
  • somehow similar to a real use case

The villain

We have around 1000 Truevision images that we want to open, fill the first 5 pixels with red color(simulate a watermark?) and finally save it.

Image used


Need for speed: Hot pursuit two!

It's a batch process

Each delay will add up!

Image sizes: 15, 150, 512, 1024, 2048 and 4096 pixels wide.

Truevision image format or *.tga

Often referred to as targa: raster graphics format.

Why tga?

  • Simple compression algorithm.
  • Used is computer graphics so it has some use cases.
  • Found a python package that I could port(copy).

TGA structure

header pixel data footer
id length RLE Extension offset
image specifications no compression Signature

Pixel structure:

  • Grayscale - 8 bit depth
  • RGB - 16 bit depth
  • RGB - 24 bit depth
  • RGBA - 32 bit depth

RLE compression algorithm Run-length encoding (RLE)

lossless data compression

A hypothetical scan line, with B - black pixel and W - white:


With a run-length encoding (RLE):


Getting out of trouble

Now that we know our "villain" how can we overcome it?

“If I have to have a past, then I prefer it to be multiple choice.” ― Joker from Batman: The Killing Joke

Keep it simple stupid!

Maybe we can "cheat"!

We do not strive for the fastest implementation, we strive for "good enough" with minimal, preferably none, development time


The hero we need, the hero we want(well most of the time at least)!

The slowest implementation, but good reference point

Serves as blueprint for the Nim implementation

class TGAHeader(object):
    def __init__(self):
        self.id_length = 0
        self.color_map_type = 0
        self.image_type = 0
        # ...

class TGAFooter(object):

    def __init__(self):
        self.extension_area_offset = 0
        self.developer_directory_offset = 0
        self.signature = "TRUEVISION-XFILE"
        # ...

class Image(object):

    def __init__(self):
        self._header = TGAHeader()
        self._footer = TGAFooter()
        self._pixels = []

    def load(self, file_name):
        # ...

    def save(self, file_name, original_format=False, force_16_bit=False,
        # ...

def _encode(row):
    """Econde a row of pixels.
    This function is a generator used during the compression phase. More
    information on packets generated are after returns section."""
    # ...


Nuitka is a Python compiler. It's fully compatible with Python 2.7 .. 3.4.

You feed it your Python app, it does a lot of clever things, and spits out an executable or extension module.

If interpreting things is slow, why not compile it? Sounds crazy? think again!

nuitka --recurse-all and you are set. recurse-all option will transverse the dependencies tree and compile them to, one by one.


With a few annotations, array-oriented and math-heavy Python code can be made to be similar in performance to C, C++ and Fortran.

Numba works by generating optimized machine code using the LLVM compiler.

Compilation can run on either CPU or GPU hardware, integrates well with Python scientific software stack.

# Taken directly from the project home page
from numba import jit
from numpy import arange

# jit decorator tells Numba to compile this function.
# The argument types will be inferred by Numba when function is called.
def sum2d(arr):
    M, N = arr.shape
    result = 0.0
    for i in range(M):
        for j in range(N):
            result += arr[i,j]
    return result

a = arange(9).reshape(3,3)

Not included in the benchmark because:

The following Python language features are not currently supported:

  • Function definition
  • Class definition
  • Exception handling (try .. except, try .. finally)
  • Context management (the with statement)
  • Comprehensions (either list, dict, set or generator comprehensions)
  • Generator delegation (yield from)


PyPy is a fast, compliant alternative implementation of the Python language (2.7.12 and 3.3.5). It has several advantages and distinct features, speed, memory usage, compatibility, stackless

Get a huge speed improvement by just replacing python with pypy

eg: pypy To good to be true? Yes, yes it is!

Two things: warmup time and incompatibility with all those good python modules written with the help of C.


Nim (formerly known as "Nimrod") is a statically typed, imperative programming language that tries to give the programmer ultimate power without compromises on runtime efficiency. This means it focuses on compile-time mechanisms in all their various forms.


  • Auto-generates a Python module that wraps a Nim module
  • pymod consists of Nim bindings & Python scripts to automate the generation of Python C-API extensions
  • There's even a PyArrayObject that provides a Nim interface to Numpy arrays.

## Compile this Nim module using the following command:
##   python path/to/ greeting.nim

## Taken directly from the projects README

import strutils  # `%` operator

import pymod
import pymodpkg/docstrings

proc greet*(audience: string): string {.exportpy.} =
  docstring"""Greet the specified audience with a familiar greeting.

The string returned will be a greeting directed specifically at that audience.
  return "Hello, $1!" % audience

initPyModule("hw", greet)

>>> import hw
>>> hw.greet
<built-in function greet>
>>> hw.greet("World")
'Hello, World!'
>>> help(hw.greet)
Help on built-in function greet in module hw:

    greet(audience: str) -> (str)

    audience : str -> string

    out : (str) <- (string)

    Greet the specified audience with a familiar greeting.

    The string returned will be a greeting directed specifically at that audience.

Procedure parameter & return types

The following Nim types are currently supported by Pymod:

Type family Nim types Python2 type Python3 type
floating-point `float`, `float32`, `float64`, `cfloat`, `cdouble` `float` `float`
signed integer `int`, `int16`, `int32`, `int64`, `cshort`, `cint`, `clong` `int` `int`
unsigned integer `uint`, `uint8`, `uint16`, `uint32`, `uint64`, `cushort`, `cuint`, `culong`, `byte` `int` `int`
non-unicode character `char`, `cchar` `str` `bytes`
string `string` `str` `str`
Numpy array `ptr PyArrayObject` `numpy.ndarray` `numpy.ndarray`

Support for the following Nim types is in development:

Type family Nim types Python2 type Python3 type
signed integer `int8` `int` `int`
boolean `bool` `bool` `bool`
unicode code point (character) `unicode.Rune` `unicode` `str`
non-unicode character sequence `seq[char]` `str` `bytes`
unicode code point sequence `seq[unicode.Rune]` `unicode` `str`
sequence of a single type T `seq[T]` `list` `list`

Going Commando: ditching pymod and using ctypes

Original blog post here:

# median_test.nim
proc median*(x: openArray[float]): float {. exportc, dynlib .} =
  ## Computes the median of the elements in `x`.
  ## If `x` is empty, NaN is returned.
  if x.len == 0:
    return NAN

  var sx = @x # convert to a sequence since sort() won't take an openArray

if sx.len mod 2 == 0:
  var n1 = sx[(sx.len - 1) div 2]
  var n2 = sx[sx.len div 2]
  result = (n1 + n2) / 2.0
  result = sx[(sx.len - 1) div 2]

Python Code

from ctypes import *

def main():
    test_lib = CDLL('median_test')

    # Function parameter types
    test_lib.median.argtypes = [POINTER(c_double), c_int]

    # Function return types
    test_lib.median.restype = c_double

    # Calc some numbers
    nums = [1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0]
    nums_arr = (c_double * len(nums))()
    for i,v in enumerate(nums):
        nums_arr[i] = c_double(v)

    med_res = test_lib.median(nums_arr, c_int(len(nums_arr)))
    print('The median of %s is: %f'%(nums, med_res))

if __name__ == '__main__':

Compile and run

$nim c -d:release --app:lib median_test.nim
The median of [1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0] is: 4.500000

How do we know the arguments type?

nim c --app:lib --header median_test.nim

The --header option will produce a C header file in the nimcache folder where the module is compiled.

#ifndef __median_test__
#define __median_test__
#define NIM_INTBITS 32
#include "nimbase.h"
N_NOCONV(void, signalHandler)(int sig);
N_NIMCALL(NI, getRefcount)(void* p);
N_LIB_IMPORT N_CDECL(NF, median)(NF* x, NI xLen0);
N_LIB_IMPORT N_CDECL(void, NimMain)(void);
#endif /* __median_test__ */

PyMod -> NimTga implementation

# ...
proc loads*(filename: string): tuple[header, footer: string, pixels: ptr PyArrayObject] {.exportpy, returnDict.}=
  let image = newImage(filename)
  let shape = getShape(image.header) # pixel shape: 1, 3 or 4 values
  result.header = $$image.header
  result.footer = $$image.footer
  # create a numpy array [[...shape], [...shape]]
  result.pixels = createSimpleNew([image.pixels.high, shape], np_uint8)
  # fill them with zeroes to get rid of random values
  doFILLWBYTE(result.pixels, 0)

  var i = 0
  for mval in result.pixels.accessFlat(uint8).mitems:  # Forward-iterate through the array.
    mval = image.pixels[i div shape][i mod shape]

proc saves*(header, footer: string, pixels: ptr PyArrayObject, filename: string, compress: int) {.discardable, exportpy.}=
    image = newImage(to[Header](header), to[Footer](footer))
    i = 0

  let shape = pixels.strides[0]
  var pixel_data = newSeq[uint](shape)

  for v in pixels.accessFlat(uint8).items:
    pixel_data[i] = v
    if i == shape - 1:
      pixel_data = newSeq[uint](shape)
      i = -1
    inc(i), compress.bool)

initPyModule("_ntga", loads, saves)

# ...
class Image(object):

    def __init__(self, filename):
        _data = _ntga.loads(filename)
        self._header = json.loads(_data["header"])
        self._footer = json.loads(_data["footer"])
        for section in [self._header, self._footer]:
            for k, v in section.items():
                setattr(self, k, v)
        self.pixels = _data["pixels"]

    def save(self, filename, compress=False):
        for section in [self._header, self._footer]:
            for k in section:
                section[k] = getattr(self, k)
        _ntga.saves(json.dumps(self._header), json.dumps(self._footer),
                    self.pixels, filename, int(compress))

def pixel_size(self):
    if self._header['image_type'] in [3, 11]:
        return 1
    elif self._header['image_type'] in [2, 10]:
        if self._header['pixel_depth'] == 16 or self._header['pixel_depth'] == 24:
            return 3
        elif self._header['pixel_depth'] == 32:
            return 4
            raise ValueError("Invalid pixel depth")
        raise ValueError("Invalid pixel depth")

def main(image_path=None):
    image_path = image_path if image_path else sys.argv[1]
    image = Image(image_path)

    for i in range(5):
        image.pixels[i] = pixel"dump.tga", compress=True)

if __name__ == "__main__":

Did I get out of trouble?

“Enough madness? Enough? And how do you measure madness? - The Joker”

PC specs

  • Motherboard: Abit IP35
  • CPU: Intel(R) Xeon(R) X5460 @ 3.16GHz 4 cores
  • Memory: DDR2 4GiB @ 800MHz
  • HDD: Seagate Baracuda x 2 RAID0

import os
from subprocess import call

BASE_PATH = os.path.join(os.getcwd(), 'images')

def st_time(func):
    from functools import wraps
    import time

    def st_func(*args, **kwargs):
        t1 = time.time()
        func(*args, **kwargs)
        t2 = time.time()
        return t2 - t1

    return st_func

def cpython(image_path):
    from pyTGA.measure import main
    return main(image_path)

def pypy(image_path):
    return call(["pypy", "pyTGA/", image_path])
# ...

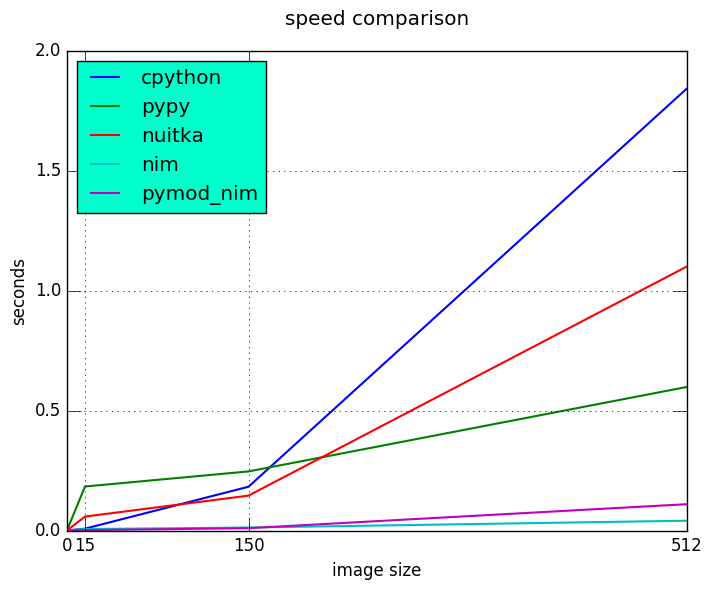

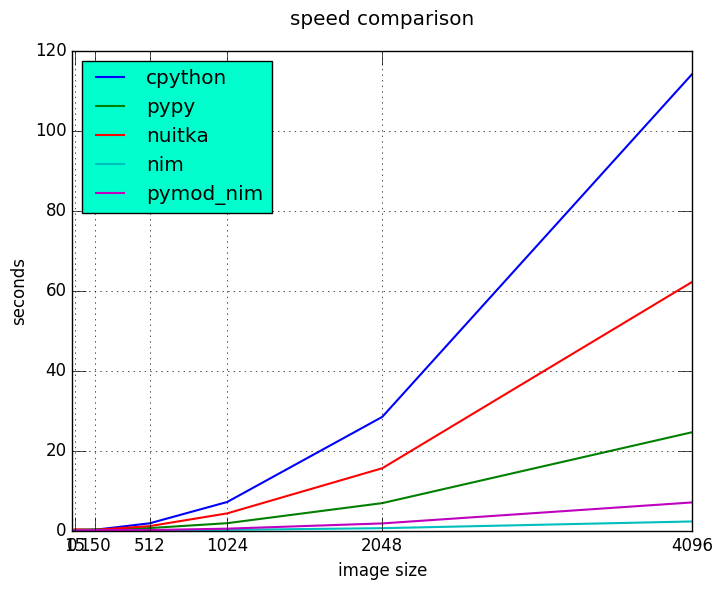

# start the x axis at 0
x = [0, 15, 150, 512, 1024, 2048, 4096]
tests = [cpython, pypy, nuitka, nim, pymod_nim]
images = ["pie_15_11.tga", "pie_150_113.tga",
          "pie_512_384.tga", "pie_1024_768.tga",
          "pie_2048_1536.tga", "pie_4096_3072.tga"]

for t in tests:
    res = [0, ]    # 0 because we want to start from the same point on both axis
    for image in images:
        image_path = os.path.join(BASE_PATH, image)
        # res will be ploted with matplotlib
        print "benchmarking: {} with size: {}".format(t.__name__, image)



Detail view on the fastest three


Detail view on small execution time


Hello, is it Nim you're looking for?

“True love is finding someone whose demons play well with yours” ― The Joker Batman Arkham City

What is Nim?

Original talk given by the language creator Andreas Rumpf at OSCON 2015

  • new system programming language
  • compiles to C
  • garbage collection + manual memory management
  • thread local garbage collection
  • design goals: efficient, expressive, elegant


  • as fast as C
  • as expressive as Python
  • as extensible as Lisp

Uses of Nim

  • web development
  • games
  • compilers
  • operating system development
  • scientific computing
  • scripting
  • command line applications
  • UI applications
  • And lots more!

Nim for Python programmers

Similarities and differences.

Feature Python Nim
Execution model Virtual Machine, JIT Machine code via C*
Meta-programming Python (decorators/metaclasses/eval) Nim (const/when/template/macro)
Memory Management Garbage-collected Garbage-collected and manual
Types Dynamic Static
Dependent types - Partial support
Generics Duck typing Yes
int8/16/32/64 types No Yes
Bigints (arbitrary size) Yes (transparently) Yes (via nimble package)
Arrays Yes Yes
Bounds-checking Yes Yes
Type inference Duck typing Yes (extensive support)
Closures Yes Yes
Operator Overloading Yes Yes (on any type)
Custom Operators No Yes
Object-Oriented Yes Minimalistic**
Methods Yes Yes
Multi-Methods No Yes
Exceptions Yes Yes

\*Other backends supported and/or planned \** Can be achieved with macros

" The real joke is your stubborn, bone deep conviction that somehow, somewhere, all of this makes sense! That's what cracks me up each time!" - Batman #681

Bonta Sergiu Vlad Email:
